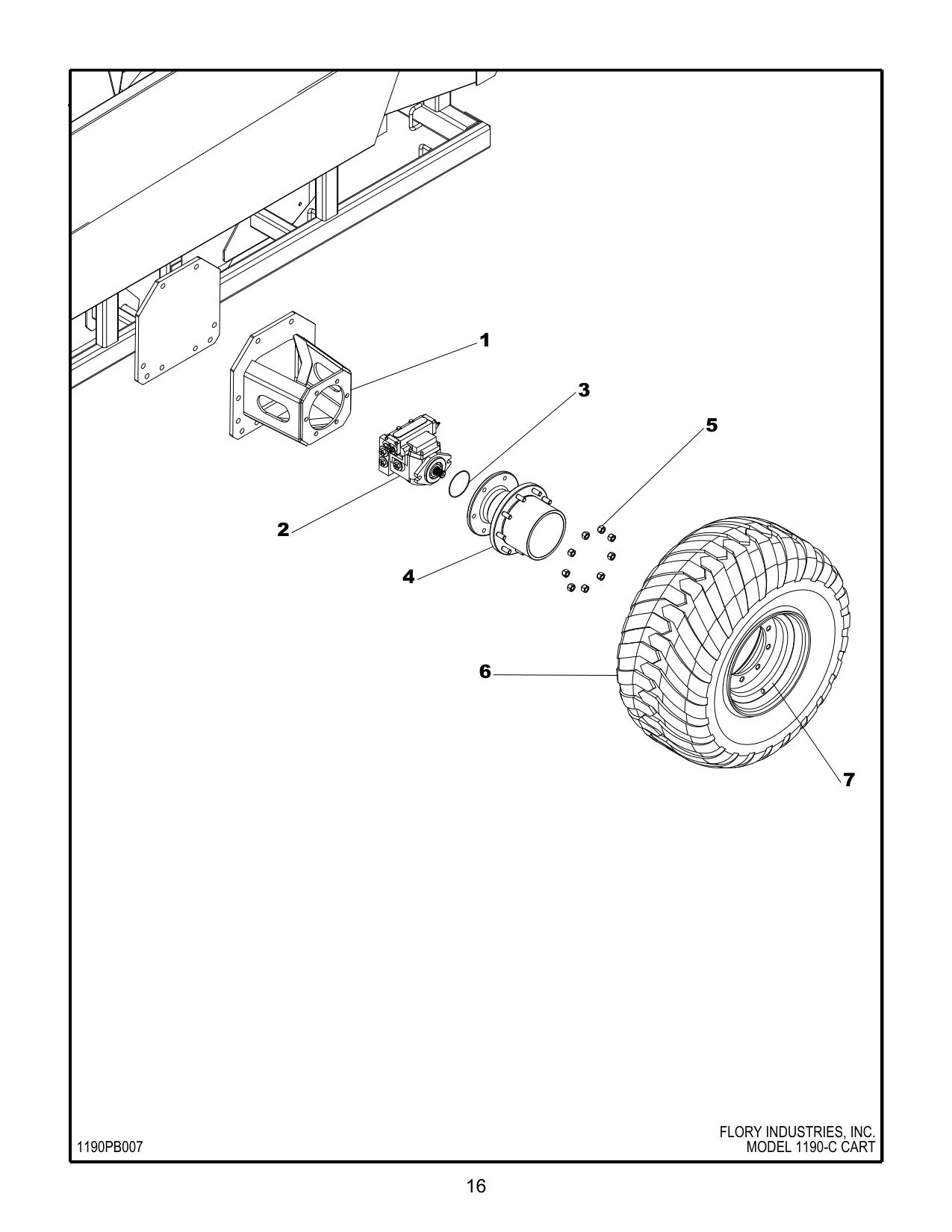

Figure 8 · Flory Flory 1190-C Cart
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | L67285 | MOUNT, torque hub | 2 |
| 2A | HM7220 | MOTOR, wheel | 2 |
| 2B | HM6220-K | SEAL KIT, wheel motor | 2 |
| 3 | OR9155 | O-RING | 2 |
| 4 | TH2161 | HUB, torque (s/n ~1079) | 2 |
| 4 | TH2161-2 | HUB, torque (Replaces TH2161)(s/n 1080~) | 2 |
| 5 | 102070 | NUT, lug | 18 |
| 6A | 400/60-15.5 | TIRE | 2 |
| 6B | TH9121 | TUBE, tire (s/n 1090~) | 2 |
| 7 | WH1510 | WHEEL | 2 |
| 7 | 1190PB007 | MODEL 1190-C CART |
