Augers And Running Gear · Flory Flory 1190-C Cart

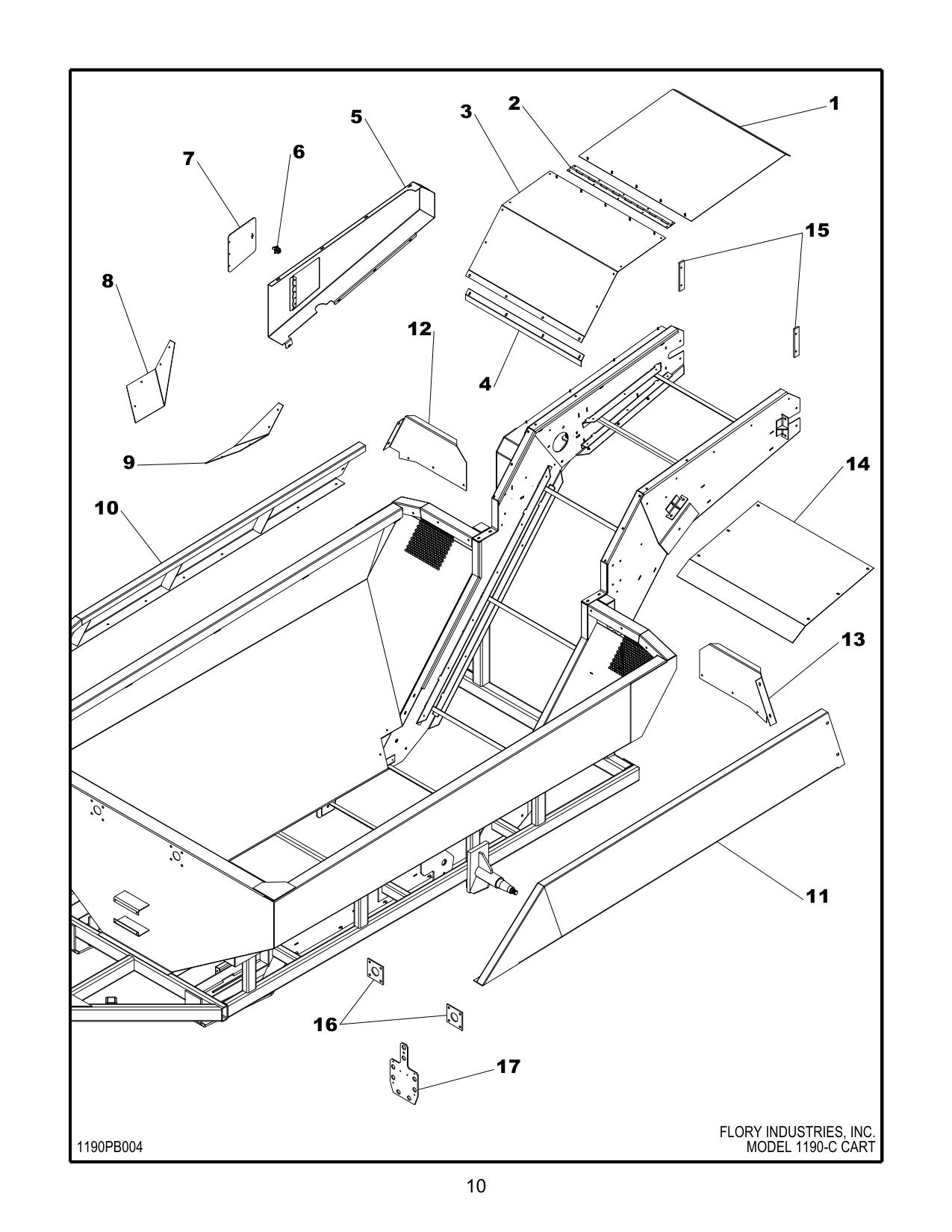

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | C2088 | COVER, elevator (upper) | 1 |
| 2 | C2710 | HINGE, elevator hinge | 1 |
| 3 | C2087 | COVER, elevator (lower) | 1 |
| 4 | C2089 | COVER, elevator extension | 1 |
| 5 | C2281 | SHIELD, conveyor drive | 1 |
| 6 | 44 | LATCH, shield | 1 |
| 7 | C2700 | DOOR, conveyor shield | 1 |
| 8 | C6727 | BRACE, lower conveyor and elevator (right) | 1 |
| 9 | C6729 | BRACE, lower conveyor and elevator (left) | 1 |
| 10 | C60951 | EXTENSION, side (right) | 1 |
| 11 | C60971 | EXTENSION, side (left) | 1 |
| 12 | C65251 | EXTENSION, tank (right, rear) | 1 |
| 13 | C65271 | EXTENSION, tank (left, rear) | 1 |
| 14 | C6122 | SLIDE, conveyor chain | 1 |
| 15 | C6624 | BRACE, upper conveyor (left) | 2 |
| 16 | C2934 | COVER, auger bearing | 2 |
| 17 | C6778 | MOUNT, hydraulic hose | 1 |
| 17 | 1190PB004 | MODEL 1190-C CART |
