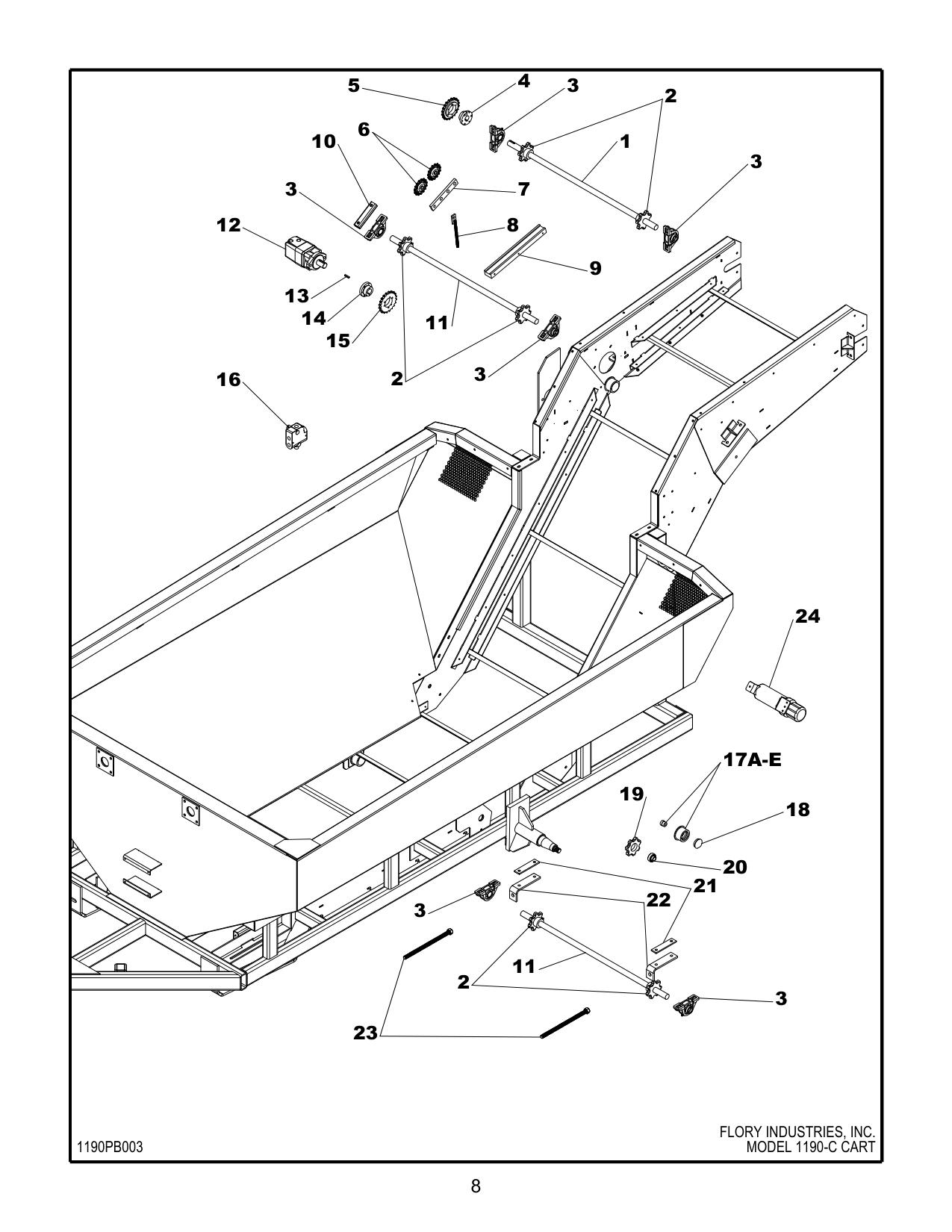

Figure 3 · Flory Flory 1190-C Cart
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | C5207 | SHAFT, conveyor drive (upper) | 1 |
| 2 | CA550X7T | SPROCKET, shaft (welded) | 6 |
| 3 | PBC2103 | BEARING | 6 |
| 4 | SDS103 | BUSHING | 1 |
| 5 | 60SDS18H | SPROCKET, conveyor driven (almonds) (s/n ~1225) | 1 |
| 5 | 60SDS22H | SPROCKET, conveyor driven (almonds) (s/n 1226~) | 1 |
| 5 | 60SDS24 | SPROCKET, conveyor driven (other crops) | 1 |
| 6 | AG2417 | IDLER, chain | 2 |
| 7 | C6403 | ARM, idler | 1 |
| 8 | C6705 | REDI BOLT, idler | 1 |
| 9 | K3204 | GUIDE, roller chain | 1 |
| 10 | C1225 | SPACER, bearing | 1 |
| 11 | C5053 | SHAFT, elevator and conveyor | 2 |
| 12A | HM1192 | MOTOR, conveyor drive (s/n ~1190) | 1 |
| 12A | HM1192-R1 | MOTOR, conveyor drive (s/n 1242 ~) | 1 |
| 12B | HM2061-K | SEAL KIT, motor | 1 |
| 12B | HM1192-R1K | SEAL KIT, motor | 1 |
| 13 | FT9705 | KEY, step | 1 |
| 14 | SDS104 | BUSHING, sprocket | 1 |
| 15 | 60SDS20 | SPROCKET, conveyor drive | 1 |
| 16A | RDRS197530 | FLOW CONTROL | 1 |
| 16B | MK2189 | SEAL KIT, flow control valve | 1 |
| 17A | RL1849 | ROLLER, chain support (includes ref. nos. 17 A-E) | 6 |
| 17B | BR1849 | BEARING, roller | 6 |
| 17C | RN7850 | SNAP RING, roller | 6 |
| 17D | SL0850 | SEAL, roller | 6 |
| 17E | BU8849-R1 | SPINDLE, roller | 6 |
| 18 | MC4850 | DUST CAP, roller | 6 |
| 19 | FS-CA5507 | SPROCKET, idler | 2 |
| 20 | ER-12 | BEARING, idler | 2 |
| 21 | C6198 | CLAMP, take up bearing | 2 |
| 22 | C6134 | BRACKET, take up bearing | 2 |
| 23 | T1234 | REDI BOLT, take up bearing | 2 |
| 24 | MM3000 | TUBE, document (s/n 1090~) | 1 |
| 24 | 1190PB003 | MODEL 1190-C CART |
