Augers And Running Gear · Flory Flory 1190-C Cart

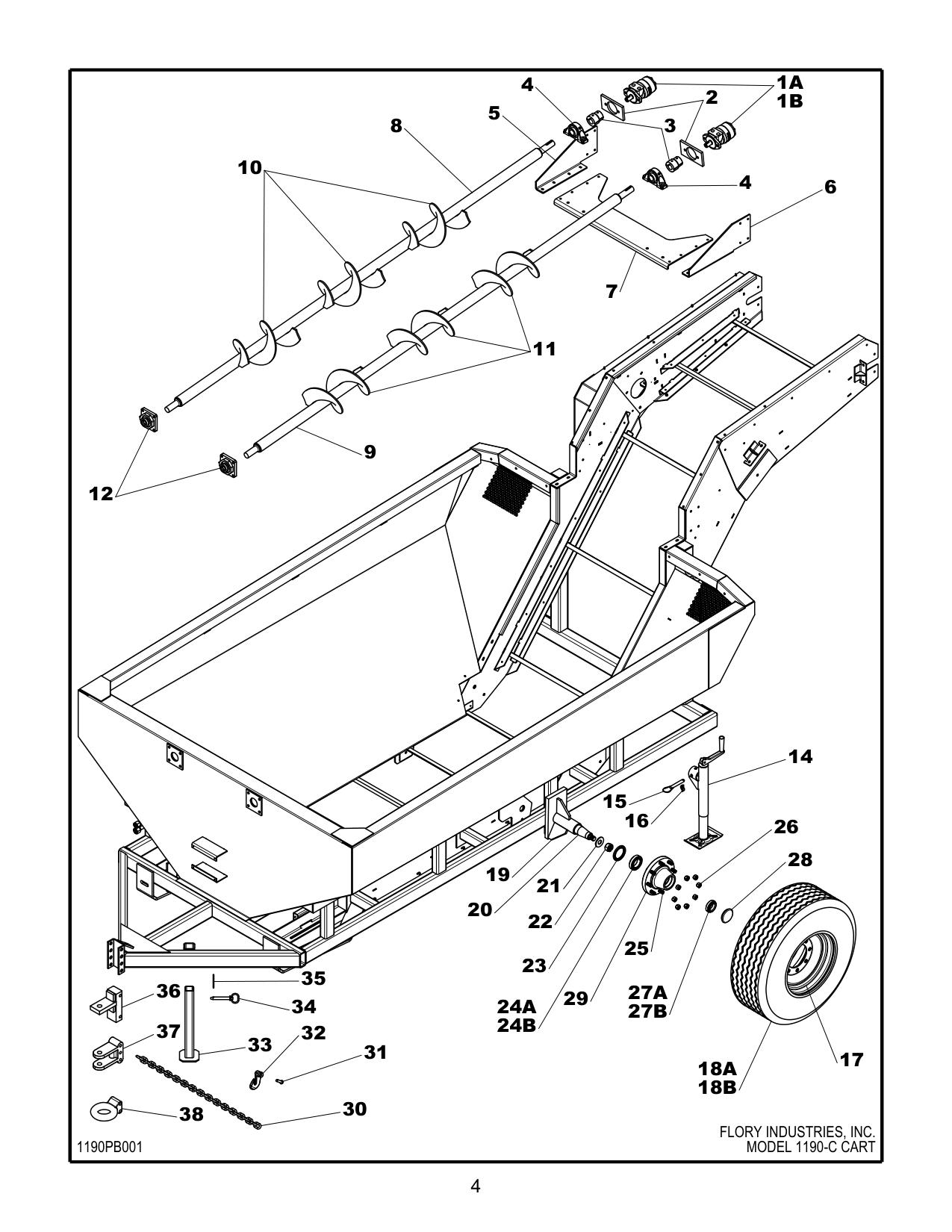

Tap a circled number on the diagram to identify the part.

diagram
✕
#Part numberDescriptionQty
1A HM1189 MOTOR, auger drive (s/n ~1089 and 1135~) 2
1A EM179 MOTOR, auger drive (s/n 1090 -1134) 2
1B HM2149-K SEAL KIT, motor (s/n ~1089 and 1135~) 2
1B CM226SK SEAL KIT, motor (s/n 1090 - 1134) 2
2 C6815 BRACKET, auger motor torque 2
3 CP9116 COUPLER, auger shaft 2
4 PBC2106 BEARING, auger shaft (rear) 2
5 C6645 BRACKET, bearing mount (right) 1
6 C6647 BRACKET, bearing mount (left) 1
7 C6713 MOUNT, auger bearing 1
8 C51201 SHAFT, auger (w/ flights) (right) 1
9 C51221 SHAFT, auger (w/ flights) (left) 1
10 MM1180 FLIGHTING, auger (right) 3
11 MM1181 FLIGHTING, auger (left) 3
12 FLC4106 BEARING, auger shaft (front) 2
13 BA2011 MOUNT, jack stand (welded) 1
14 HT8110 STAND, jack (rear) 1
15 FS-PN6010 PIN, jack 1
16 PN2004 PIN, linch 1
17 107188 WHEEL 2
18A 12X16.5 TIRE 2
18B TH9121 TUBE, tire (s/n 1090~) 2
19 SK6230 SPINDLE ASSEMBLY 2
20 107007A SPINDLE (weld) 2
21 106247 WASHER, spindle 2
22 106248 NUT, spindle 2
23 CR27394 SEAL, hub 2
24A JLM506849 CONE, bearing (inner) 2
24B JLM506810 CUP, bearing (inner) 2
25 102069 BOLT, wheel lug 16
26 102070 NUT, wheel lug 16
27A LM501310 CUP, bearing (outer) 2
27B LM501349 CONE, bearing (outer) 2
28 103212 CAP, hub dust 2
29 107013 HUB, wheel (includes ref. nos. 23-29) 2
30 C4004 CHAIN, safety 1
31 42953 PIN, grab hook 1
32 38GH HOOK, grab (3/8”) 1
33 C6738 STAND, jack (front) 1
34 PN6011 PIN, jack 1
35 PN3005 PIN, hair 1
36 C6191 HITCH, single lip (standard) 1
37 HT2010 HITCH, double lip (optional) 1
38 6137 HITCH, lunette (optional) 1
38 1190PB001 5 MODEL 1190-C CART
