ELEVATOR CHAINS · Weiss McNair 9800 Harvester

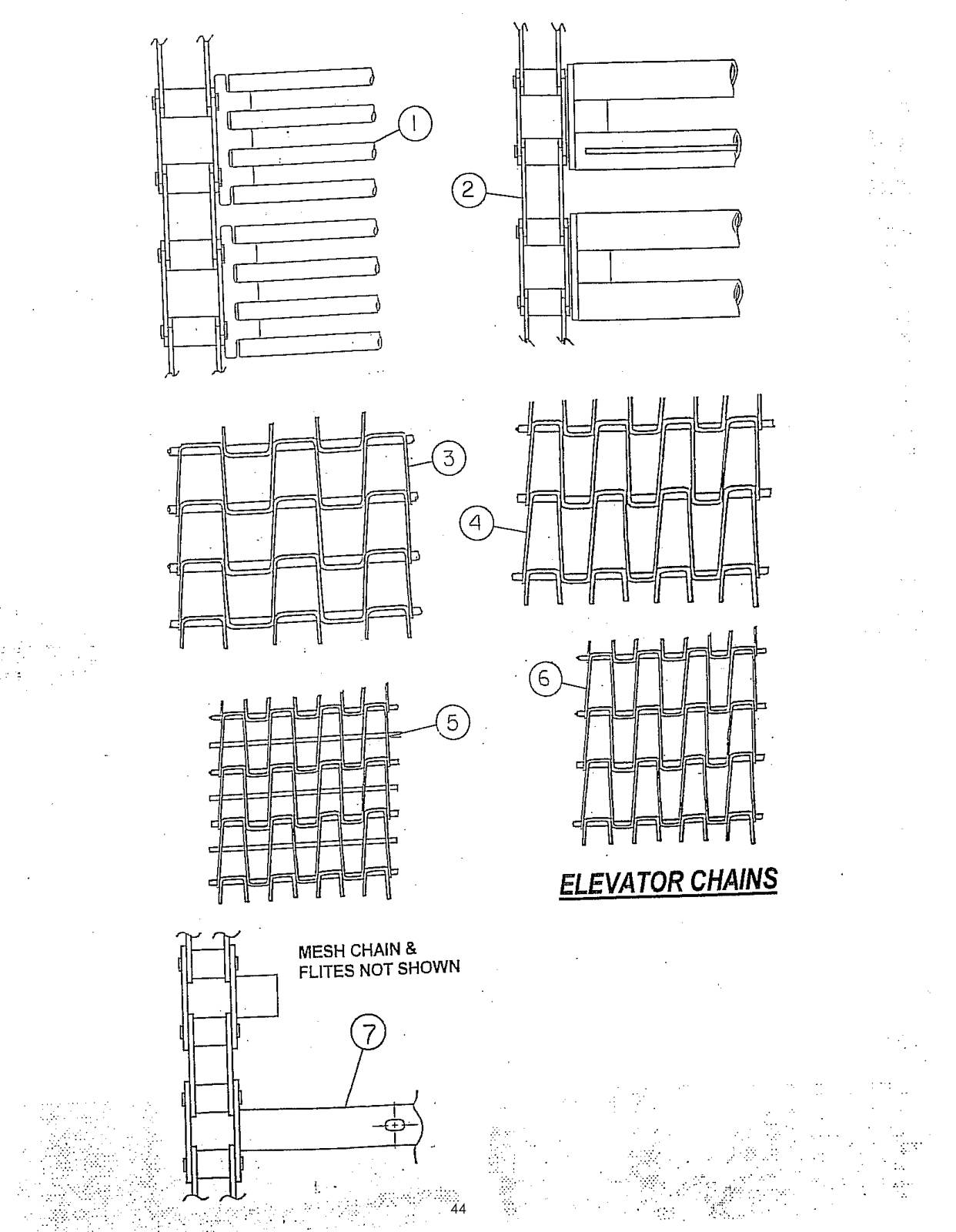

Tap a circled number on the diagram to identify the part.
1
2
3
4
5
6
7
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | 50-00420 | CAPSCREW, BUTTON HEAD, 10-32 X 1-1/4 | 20 |
| 2 | 50-00319 | RUBBER BELTING, 32mm X 60mm | 2 |
| 3 | 50-00320 | RUBBER BELTING, 32mm X 25mm | 1 |
| 4 | 50-00321 | 4 HOLE CLIP, BELTED CHAIN | 4 |
| 5 | 50-00322 | 1/2 CLIP, BELTED CHAIN | 2 |
| 6 | 50-00339 | THREADED BACKING PLATE, 2 HOLE | 8 |
| 7 | 50-00340 | THREADED BACKING PLATE, 1 HOLE | 4 |
| 8 | 50-00355 | BELTED CHAIN BAR, 7/16 " (11mm) X 48" | 94 |
| 9 | 798-0540 | FLITE BAR, 3/4" | 16 |
| 10 | 805-608 | MASTER PIN | 1 |
| 11 | 805-613 | TWO HOLE BACKING PLATE | 216 |
