VACUUM CHAMBER ASSEMBLY · Weiss McNair 9800 Harvester

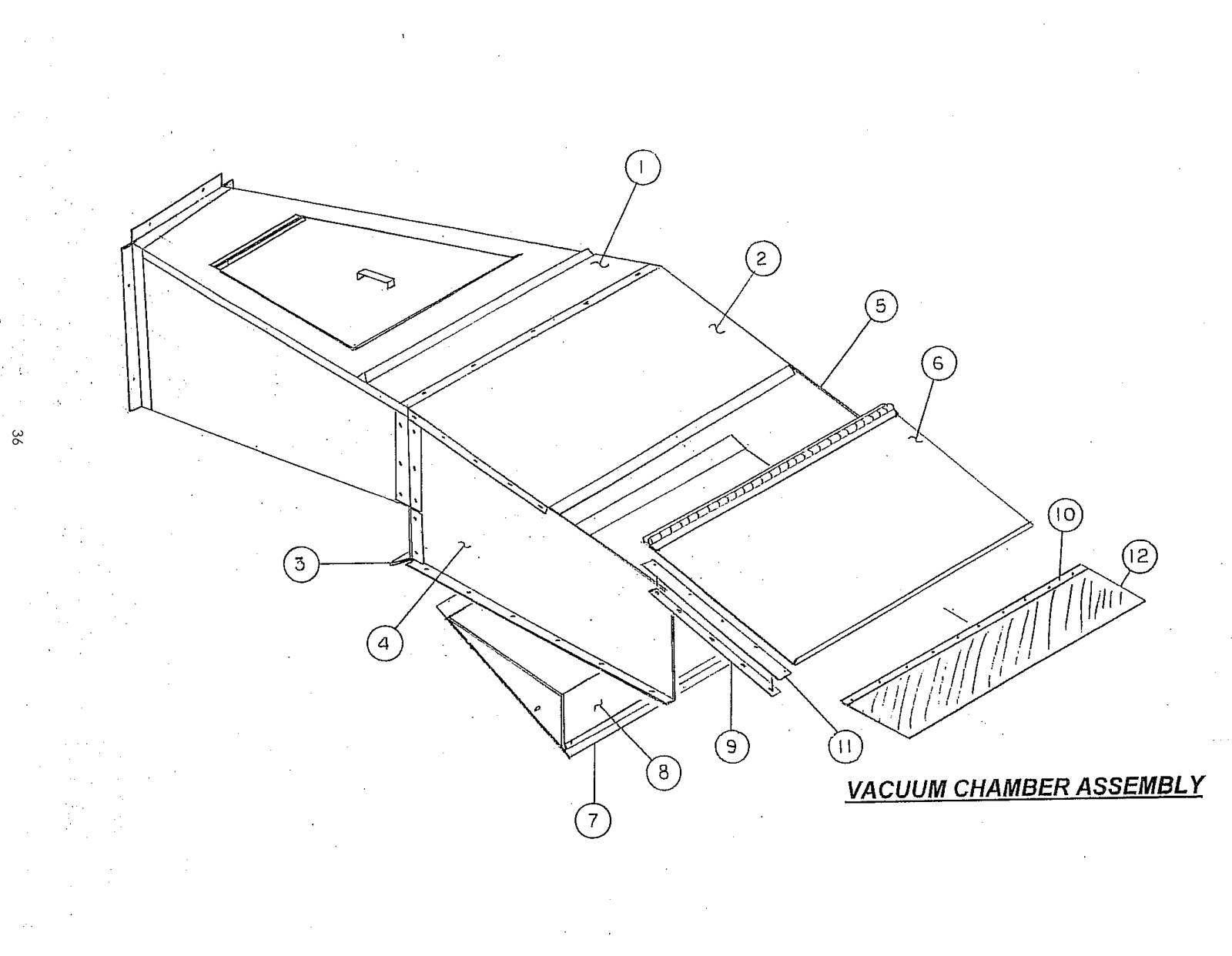

Tap a circled number on the diagram to identify the part.
1
2
3
4
5
6
7
8
9
10
11
12
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | 06083-01 | PULLEY, CHAIN IDLER | 2 |
| 2 | 800-212 | RUBBER ROLLER - 7/8 ID X 3" | 12 |
| 3 | 802-007 | PB1 BEARING | 2 |
| 4 | 802-012 | BEARING, VAS 1 1/4 | 4 |
| 5 | 804-565 | PVC SPACER - 19 3/8" | 8 |
| 6 | 805-620 | UHMW SHAKER ROLLER | 3 |
| 7 | 894-039 | RUBBER DRIVE ROLLER | 1 |
| 8 | 894-163 | CHAIN SHAKER SHAFT | 1 |
| 9 | 898-067 | CHAIN SIDE RAIL | 2 |
| 10 | 948-16 | BOTTOM ELEV. ROLLER SHAFT KIT | 1 |
| 11 | 948-213 | SUPPORT ROD - 51 1/2" | 3 |
| 12 | 948-214 | SUPPORT ROD - 53 1/2" | 1 |
