ELEVATOR ROLLER DRIVE - Part Number: 899-0138 (Sheet 2 of 2) · Weiss McNair 9800 Harvester

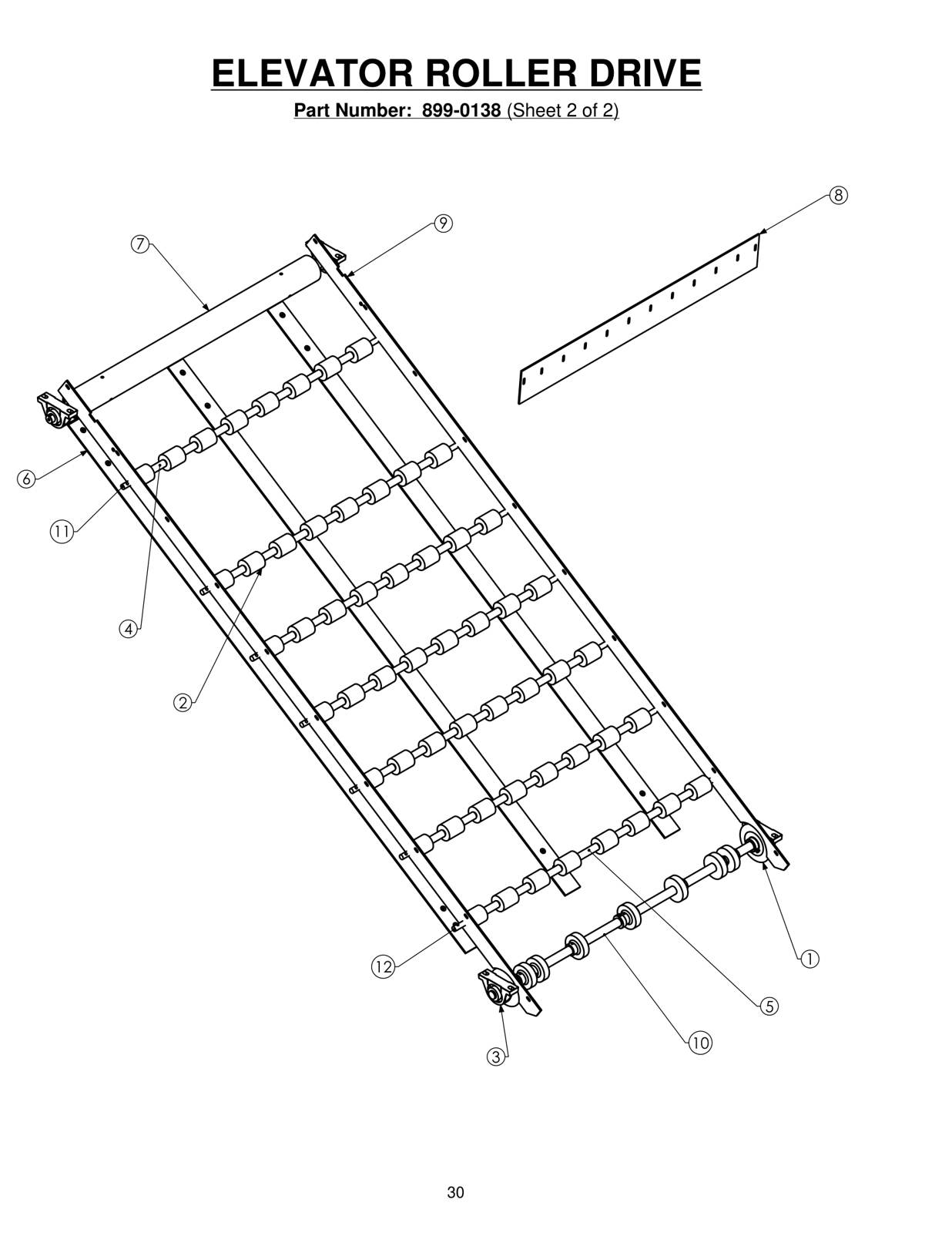

Tap a circled number on the diagram to identify the part.
1
2
3
4
5
6
7
8
9
10
11
12
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | 50-00071 | CHAIN GUIDE | 2 |
| 1 | 798-0782 | SUPPORT ROD - 51 1/2", 12L14 6 EA | |
| 2 | 800-212 | RUBBER ROLLER - 7/8 ID X 3" | 56 |
| 2 | 798-0783 | SUPPORT ROD - 53 1/2", 12L14 1 EA | |
| 3 | 802-012 | BEARING, VAS 1 1/4 | 4 |
| 3 | 798-0787 | DRIVE, 4.5IN OD X 48IN, A65 RUBBER, SMOOTH 1 EA | |
| 4 | 804-564 | PVC SPACER, 3" | 42 |
| 4 | 798-0879 | ROLLER, SHAFT, DOUBLE BEARING 21 EA | |
| 5 | 804-568 | PVC SPACER, 4 1/4" | 7 |
| 5 | 802-012 | BEARING, VAS 1 1/4 4 EA | |
| 6 | 890-072 | ELEVATOR WEAR STRIP | 3 |
| 6 | 805-604 | NOSE ROLLER 2 EA | |
| 7 | 894-034 | DRIVE ROLLER | 1 |
| 7 | 896-0045 | SPACER, RETURN PAN 2 EA | |
| 8 | 898-036 | FRONT ELEVATOR FLAP | 1 |
| 8 | 897-116 | FLAP, FRONT ELEVATOR 1 EA | |
| 9 | 898-045 | ELEVATOR CHAIN SIDE RAIL | 2 |
| 9 | 897-190 | IDLER SHAFT, AG WEB CHAIN 1 EA | |
| 10 | 948-16 | BOTTOM ELEV. ROLLER SHAFT KIT | 1 |
| 10 | 898-056 | FALLOUT RUBBER-48"MESH CHAIN KIT 2 EA | |
| 11 | 948-213 | SUPPORT ROD - 51 1/2" | 6 |
| 11 | 898-057 | RUBBER MOUNT STRAP - ELEVATOR 2 EA | |
| 12 | 948-214 | SUPPORT ROD - 53 1/2" | 1 |
| 12 | 899-0262 | ROLLER, CHAIN IDLER, RUBBER COVERED, 1.75 X 1 8 EA |
