INTERMEDIATE ROLLER DRIVE - Part Number: 899-0137 (Sheet 2 of 2) · Weiss McNair 9800 Harvester

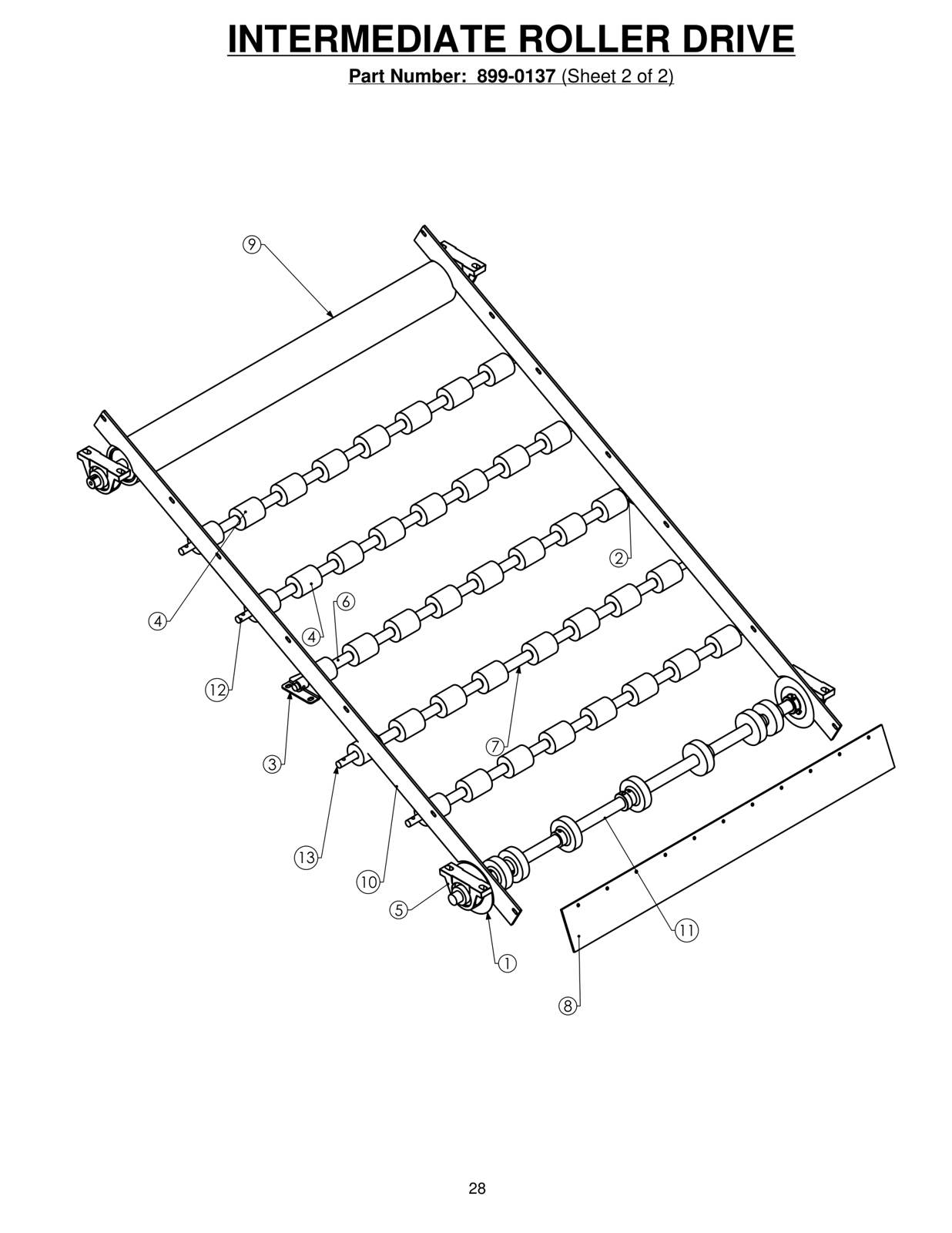

Tap a circled number on the diagram to identify the part.
1
2
3
4
4
5
6
7
8
9
10
11
12
13
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | 798-0197 | BRACKET, SUPPORT ROD LH 1 EA | |
| 2 | 798-0198 | BRACKET, SUPPORT ROD RH 1 EA | |
| 3 | 798-0782 | SUPPORT ROD - 51 1/2", 12L14 4 EA | |
| 4 | 798-0783 | SUPPORT ROD - 53 1/2", 12L14 1 EA | |
| 5 | 798-0787 | DRIVE, 4.5IN OD X 48IN, A65 RUBBER, SMOOTH 1 EA | |
| 6 | 798-0879 | ROLLER, SHAFT, DOUBLE BEARING 15 EA | |
| 7 | 802-012 | BEARING, VAS 1 1/4 6 EA | |
| 8 | 805-604 | NOSE ROLLER 2 EA | |
| 9 | 890-144 | BEARING MOUNT PLATE 2 EA | |
| 10 | 894-154 | IDLER STUB SHAFT 2 EA | |
| 11 | 896-054 | INT. FALL-OUT RUBBER 2 EA | |
| 12 | 897-048 | FLAP, PU BELT, CHAMFERED 1 EA | |
| 13 | 899-155 | FALL-OUT SUPPORT STRIP -TOP 2 EA | |
| 14 | 899-156 | FALL-OUT SUPPORT STRIP - BOTTOM 2 EA | |
| 15 | 899-0262 | ROLLER, CHAIN IDLER, RUBBER COVERED, 1.75 X 1 2 EA |
