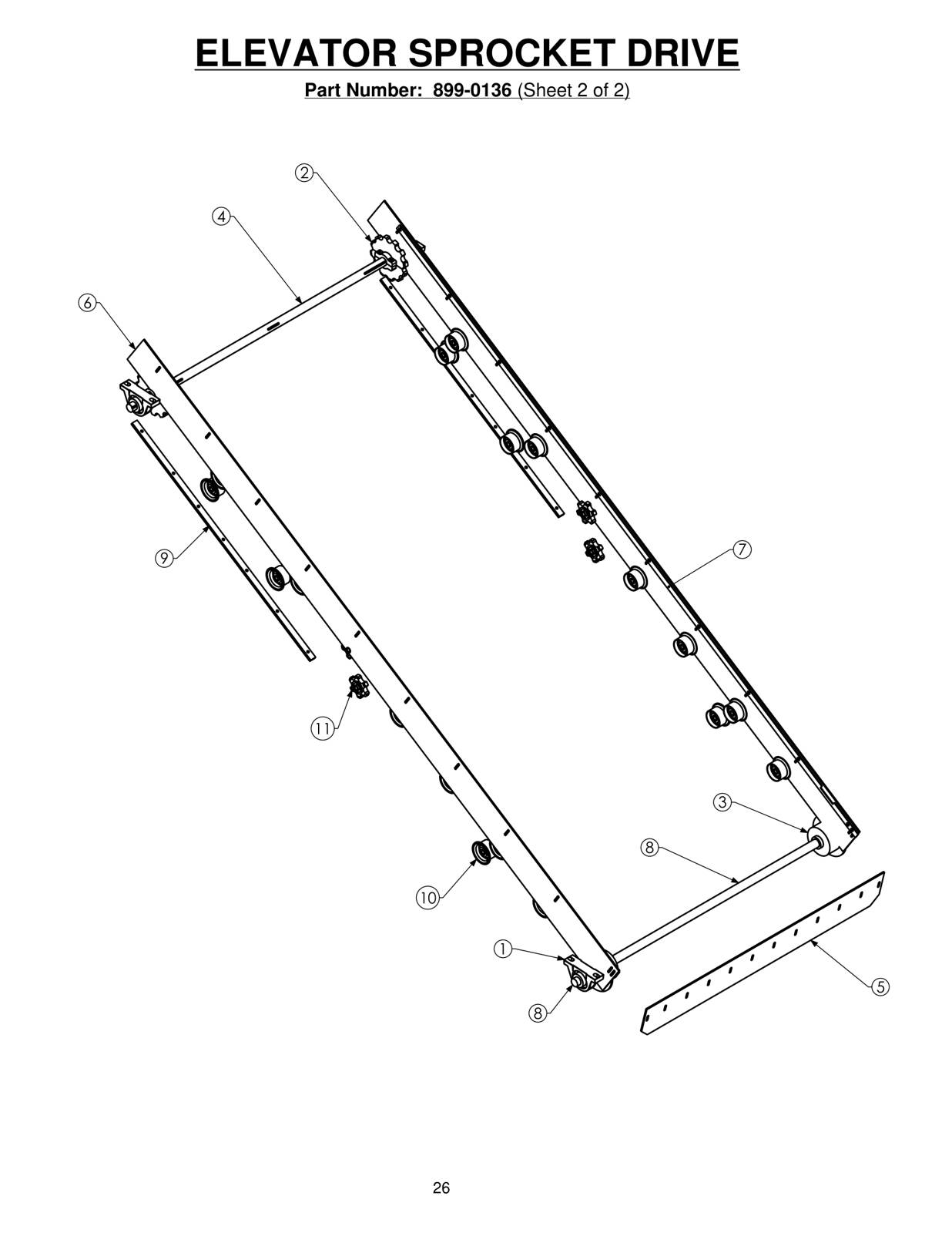

ELEVATOR SPROCKET DRIVE - Part Number: 899-0136 (Sheet 2 of 2) · Weiss McNair 9800 Harvester
Tap a circled number on the diagram to identify the part.
1
2
3
4
5
6
7
8
8
9
10
11
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | 50-00071 | CHAIN GUIDE | 2 |
| 2 | 798-0197 | BRACKET, SUPPORT ROD LH | 1 |
| 3 | 798-0198 | BRACKET, SUPPORT ROD RH | 1 |
| 4 | 800-212 | RUBBER ROLLER - 7/8 ID X 3" | 40 |
| 5 | 802-012 | BEARING, VAS 1 1/4 | 4 |
| 6 | 804-564 | PVC SPACER, 3" | 30 |
| 7 | 804-568 | PVC SPACER, 4 1/4" | 5 |
| 8 | 890-038 | BOTTOM ELEVATOR FLAP | 1 |
| 9 | 894-039 | RUBBER DRIVE ROLLER | 1 |
| 10 | 898-067 | CHAIN SIDE RAIL | 2 |
| 11 | 948-16 | BOTTOM ELEV. ROLLER SHAFT KIT | 1 |
| 12 | 948-213 | SUPPORT ROD - 51 1/2" | 4 |
| 13 | 948-214 | SUPPORT ROD - 53 1/2" | 1 |
