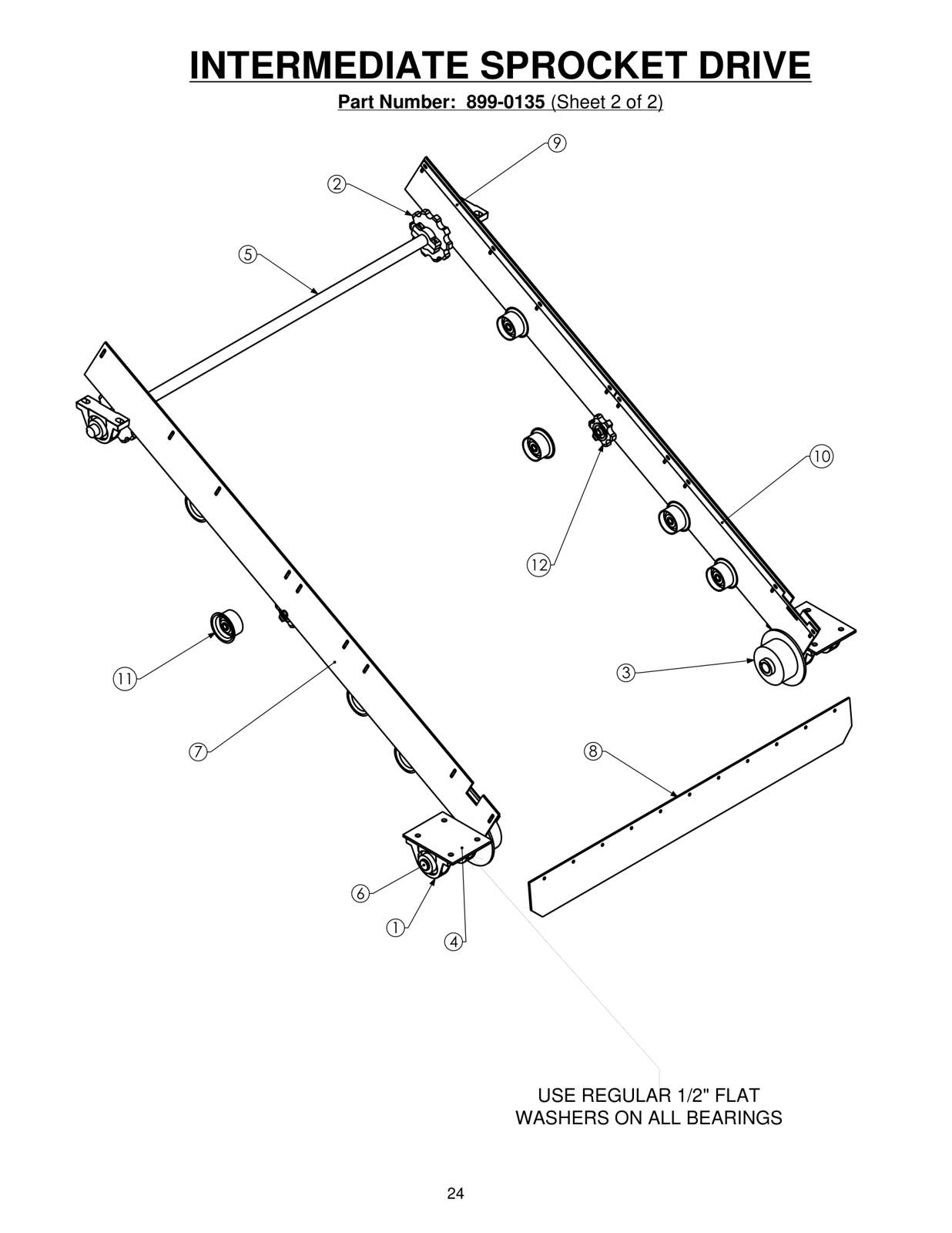

INTERMEDIATE SPROCKET DRIVE - Part Number: 899-0135 (Sheet 2 of 2) · Weiss McNair 9800 Harvester

Tap a circled number on the diagram to identify the part.

diagram
1
2
3
4
5
6
7
8
9
10
11
12
✕
#Part numberDescriptionQty
1 802-012 BEARING, VAS 1 1/4 6
1 802-012 BEARING, VAS 1 1/4 4
2 802-748 557 10 TOOTH SPLIT SPROCKET 2
2 802-749 557 12 TOOTH SPLIT SPROCKET 2
3 805-604 NOSE ROLLER 2
3 805-604 NOSE ROLLER 2
4 890-144 BEARING MOUNT PLATE 2
4 890-184 DRIVE SHAFT 1
5 890-184 DRIVE SHAFT 1
5 897-116 FLAP, FRONT ELEVATOR 1
6 894-154 IDLER STUB SHAFT 2
6 898-056 FALLOUT RUBBER-48"MESH CHAIN KIT 2
7 896-054 INT. FALL-OUT RUBBER 2
7 898-057 RUBBER MOUNT STRAP - ELEVATOR 2
8 897-048 FLAP, PU BELT, CHAMFERED 1
8 898-068 IDLER SHAFT 1
9 899-155 FALL-OUT SUPPORT STRIP -TOP 2
9 899-160 SPACER, ELEVATOR RETURN PAN 2
10 899-156 FALL-OUT SUPPORT STRIP - BOTTOM 2
10 06083-01 PULLEY, CHAIN IDLER 18
11 06083-01 PULLEY, CHAIN IDLER 8
11 76024-01 SPROCKET, 45 A 6 IDLER 4
12 76024-01 SPROCKET, 45 A 6 IDLER 2
