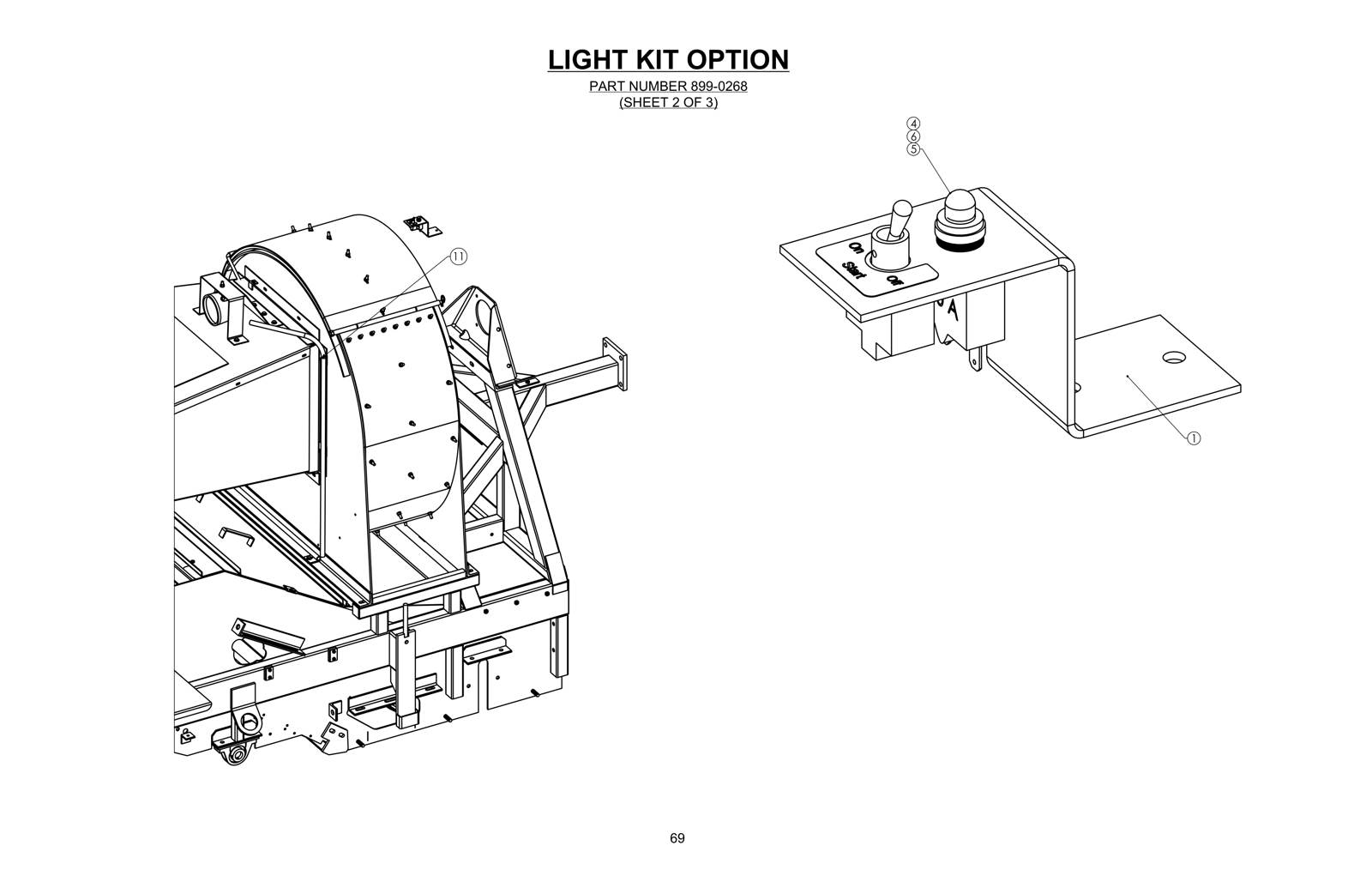

LIGHT KIT OPTION - PART NUMBER 899-0268 (SHEET 2 OF 3) · Weiss McNair 9800 Harvester
Tap a circled number on the diagram to identify the part.
4
6
5
11
1
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | 700-027 | SWITCH MOUNT 1 EA | |
| 2 | 804-625 | LIGHT, 4" ROUND, SEALED BEAM, RUBBER HOUSING 2 EA | |
| 3 | 804-649 | TOGGLE SWITCH, OFF / ON 1 EA | |
| 4 | 805-356 | CIRCUIT BREAKER, 20 AMP 1 EA | |
| 5 | 805-482 | DUST BOOT 1 EA | |
| 6 | 805-483 | DRESS NUT 1 EA | |
| 7 | 899-0029 | CHANNEL COVER 2 EA | |
| 8 | 899-0264 | LIGHT GUARD 1 EA | |
| 9 | 899-0292 | CONDUIT, BOTTOM, 9800 LIGHT KIT 1 EA | |
| 10 | 899-0293 | CONDUIT, TOP, 9800 LIGHT KIT 1 EA | |
| 11 | 26001-01 | NUT 1/4 NC 18 EA | |
| 12 | 26004-01 | WASHER, LOCK, 1/4 16 EA | |
| 13 | 26007-01 | CAPSCREW 1/4 X 3/4 NC, PLATED 16 EA | |
| 14 | 26003-01 | WASHER 1/4 " FLAT PLATED 21 EA | |
| 15 | 70-00007 | ON/OFF DECAL 1 EA |
