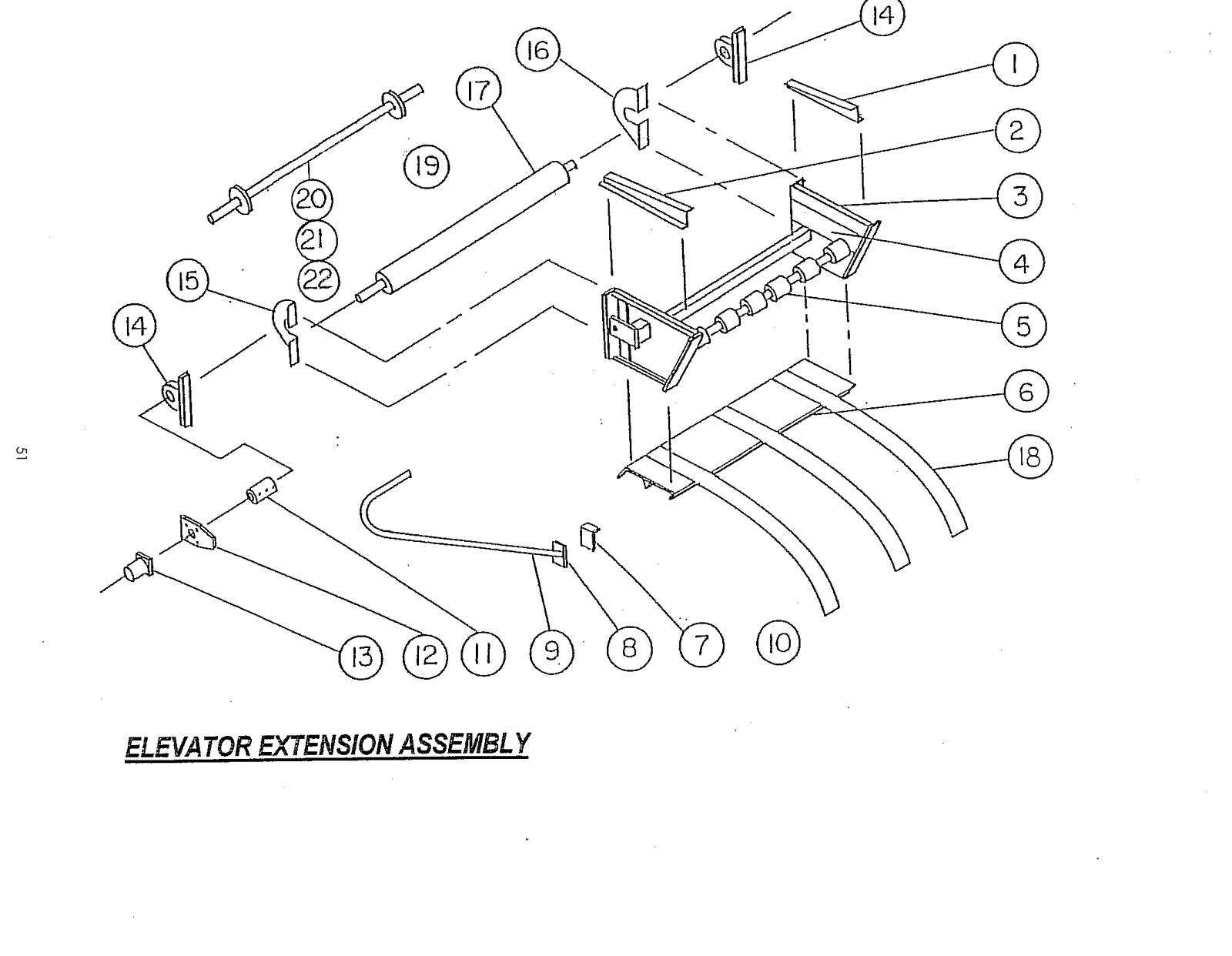

ELEVATOR EXTENSION ASSEMBLY · Weiss McNair 9800 Harvester
Tap a circled number on the diagram to identify the part.
14
16
1
17
2
19
20
3
21
4
22
15
14
5
6
18
13
12
11
9
8
7
10
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | 50-00185 | ROD, 3/8 X 48-3/8 X 2X75 X 2X60 ST | 70 |
| 2 | 50-00187 | TWO HOLE BACKING PLATE | 318 |
| 3 | 50-00188 | CLIP, 4 HOLE, 42-32, 6AF, NICKLE | 8 |
| 4 | 50-00189 | SCREW, 1/4-20 X 1.5, COUNTER SUNK SOCKET HEAD | 32 |
| 5 | 50-00190 | LOCK NUT, STOVER, 1/4"-20, CONICAL TOP | 32 |
| 6 | 50-00191 | ROD, CONNECTING, 11MM X 48-3/8 | 1 |
| 7 | 50-00282 | 32-M5 rivet plate | 132 |
| 8 | PER | FLIGHT | |
| 8 | 50-00314 | BELTING, 21-75 | 2 |
| 9 | 50-00315 | BELTING, 21-60 | 2 |
| 10 | 896-0055 | CROSS FLIGHT | 13 |
