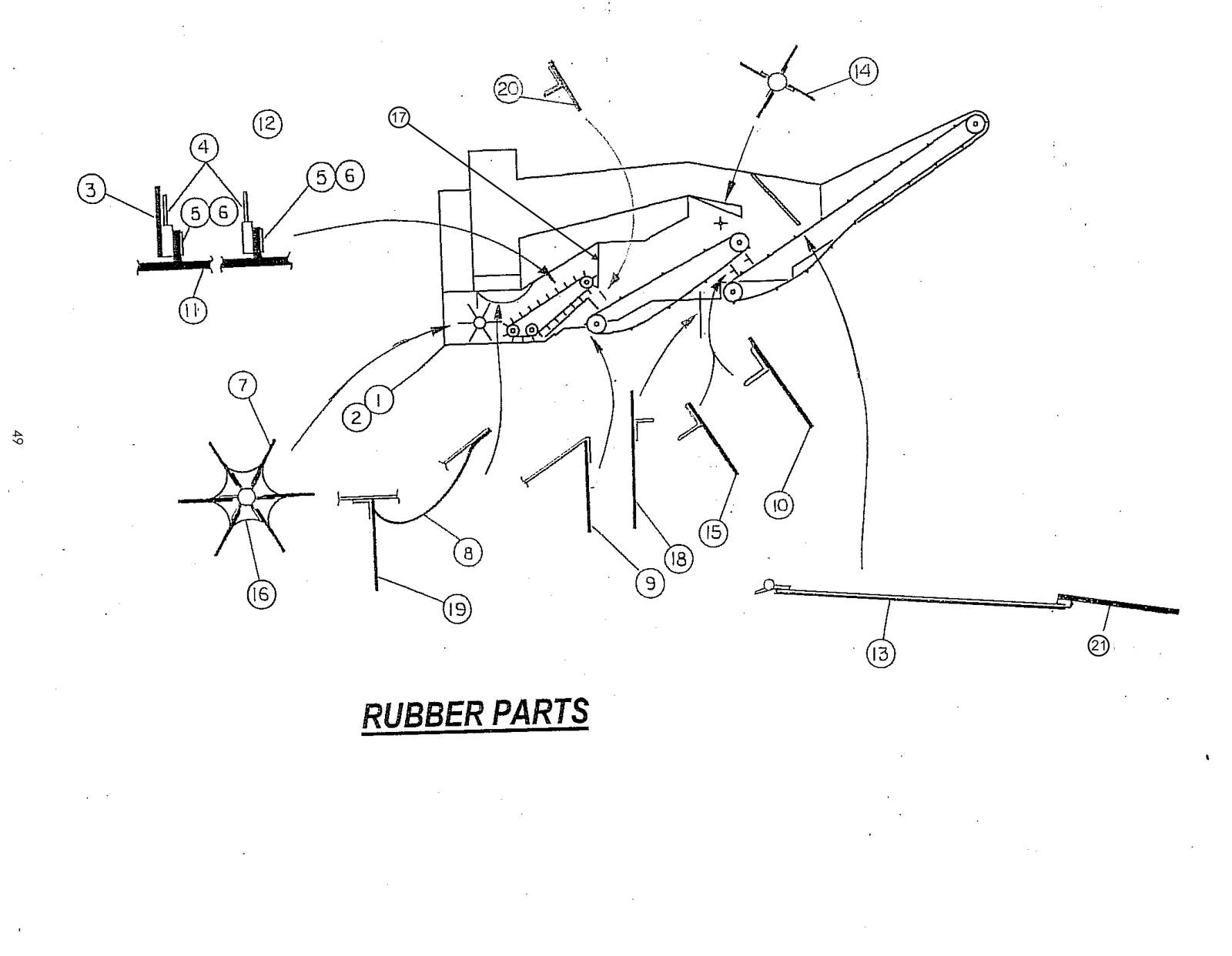

RUBBER PARTS · Weiss McNair 9800 Harvester
Tap a circled number on the diagram to identify the part.
1
2
3
4
5
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | 899-0100 | GUARD, COUPLER | 3 |
| 2 | 899-0104 | GUARD, SHAFT, FLANGE | 1 |
| 3 | 899-0105 | GUARD, SHAFT, PILLOW | 5 |
| 4 | 899-0108 | LATCH, EL DRIVE COVER | 1 |
| 5 | 27126-01 | SCREW, 1/4-20 X 1, HEX | 1 |
