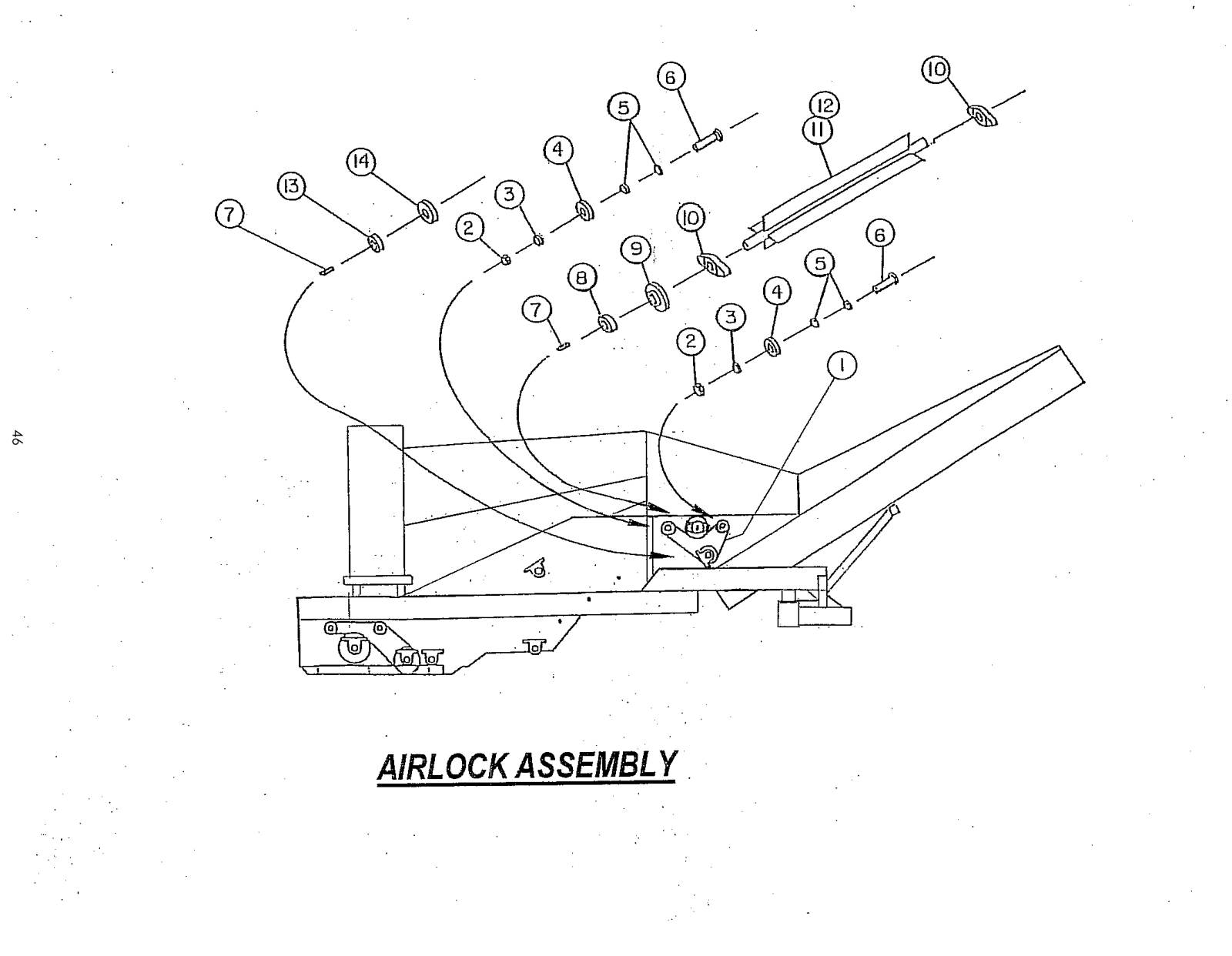

AIRLOCK ASSEMBLY · Weiss McNair 9800 Harvester
Tap a circled number on the diagram to identify the part.
1
2
2
3
3
4
4
5
5
6
6
7
7
8
9
10
10
11
12
13
14
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | 50-00190 | LOCK NUT, STOVER, 1/4"-20, CONICAL TOP 90 EA | |
| 2 | 803-137 | FLAT WIRE CLIP 90 EA | |
| 3 | 803-140 | ROD, 9 GA 18 EA | |
| 4 | 803-142 | ROD, 6 GA 1 EA | |
| 5 | 803-144 | 1/2 X 1/2 X 48", 44 LOOP 236 IN | |
| 6 | 899-0166 | FLIGHT, RUBBER, 1.5 TALL 18 EA | |
| 7 | 948-192 | CROSS FLIGHT, RUBBER, ASSY 18 EA | |
| 8 | 26003-03 | WASHER, SAE, 1/4" 90 EA | |
| 9 | 27117-01 | SCREW FLAT HD PHIL,1/4-20X1.5" 90 EA |
