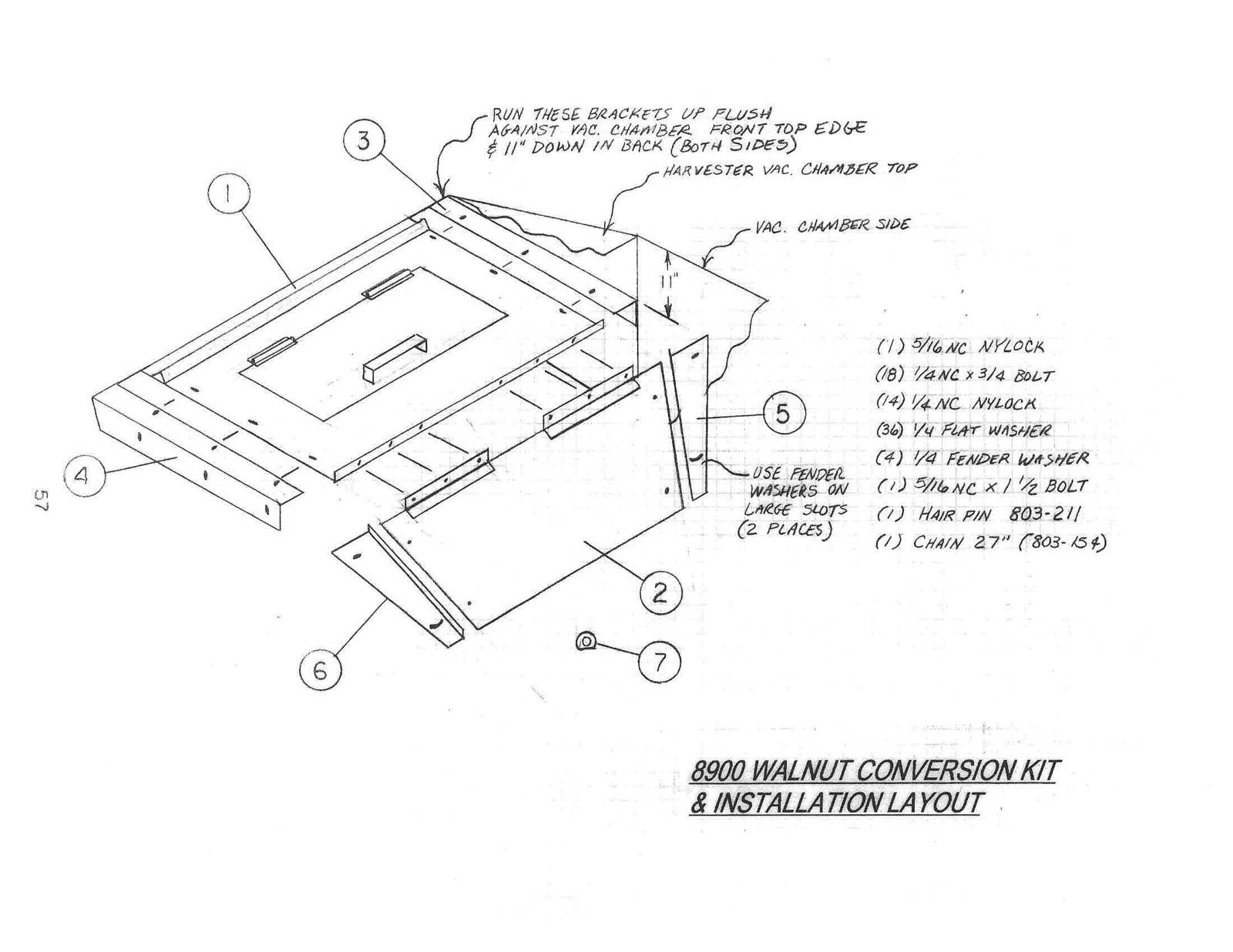

8900 Walnut Conversion Kit & Installation Layout · Weiss McNair 8900 PB Harvester
Tap a circled number on the diagram to identify the part.
3
1
5
4
2
6
7
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 5/16NC Nylock | 1 | ||
| 1/4NC x 3/4 Bolt | 18 | ||
| 1/4NC Nylock | 14 | ||
| 1/4 Flat Washer | 36 | ||
| 1/4 Fender Washer | 4 | ||
| 5/16NC x 1 1/2 Bolt | 1 | ||
| 803-211 | Hair Pin | 1 | |
| 803-154 | Chain 27" | 1 |
