8900 Shoes, Guides, & Pickup Belt Adjust (Side Shoe Assembly / Chain Roller Guide / RH Pickup Belt Lower Adjust) · Weiss McNair 8900 PB Harvester

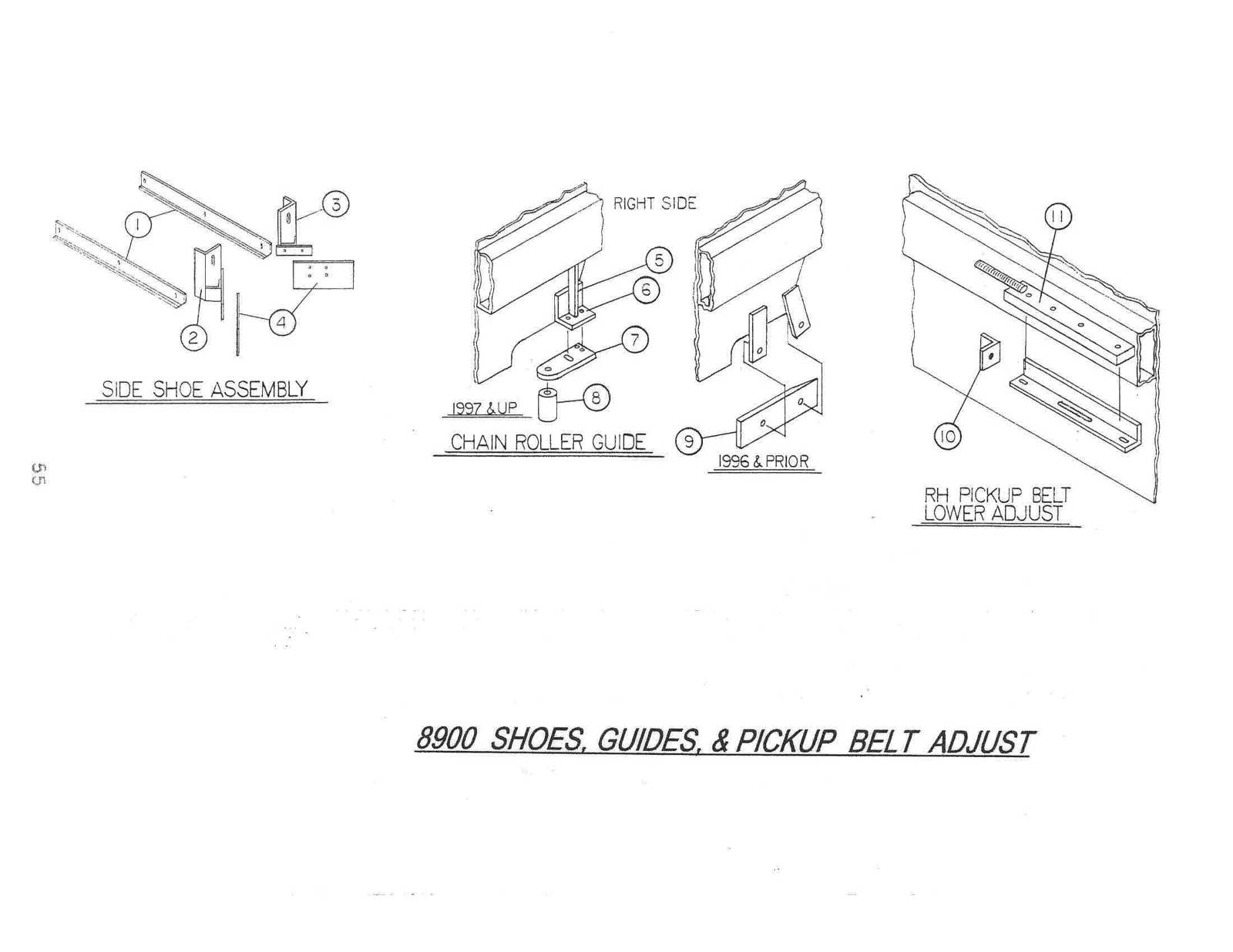

Tap a circled number on the diagram to identify the part.
1
3
2
4
5
6
7
8
9
10
11
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 890-49 | Side Shoe Pair Kit (includes Items 1-4) | 1 | |
| 1 | 890-159 | Side Shoe Bar | 2 |
| 2 | 890-160 | RH Side Shoe Bracket | 1 |
| 3 | 890-161 | LH Side Shoe Bracket | 1 |
| 4 | 948-136 | Side Shoe Rubber | 2 |
| 5 | 890-001-31 | Chain Roller Guide Gusset (weld-on) (1997 & up) | 2 |
| 6 | 890-001-30 | Chain Roller Guide Angle (weld-on) (1997 & up) | 2 |
| 7 | 890-162 | Chain Roller Adjust Plate (1997 & up) (Flat wire belt chain only) | 2 |
| 8 | 890-163 | UHMW Roller 2"DIA.x4 (1997 & up) (Flat wire belt chain only) | 2 |
| 9 | 890-026 | UHMW Chain Guide (1996 & prior) | 2 |
| 10 | 890-001-32 | RH Pickup Belt Lower Adjust Angle (weld-on) (1997 & up) | 1 |
| 11 | 890-165 | RH Pickup Belt Lower Adjust Slide (1997 & up) | 1 |
