Airlock Assembly · Weiss McNair 8900 PB Harvester

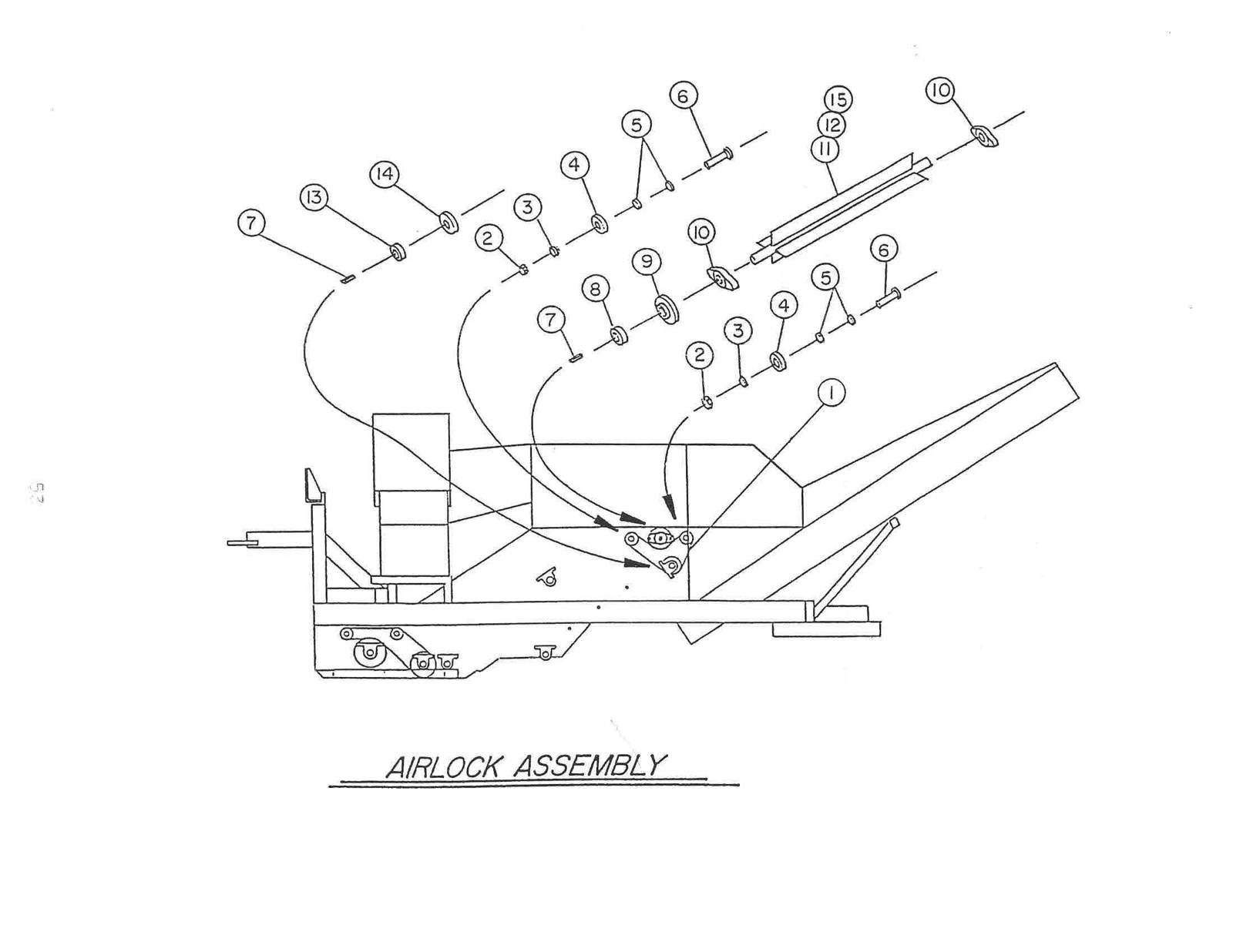

Tap a circled number on the diagram to identify the part.
7
13
14
2
3
4
5
6
15
12
11
10
10
9
8
7
5
6
4
3
2
1
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | 802-776 | #50 Roller Chain w/ Conn. Link | |
| 2 | ******* | 5/8NC Hex Nut | 2 |
| 3 | ******* | 5/8 Lock Washer | 2 |
| 4 | 802-701 | Sprocket 50BB17H | 2 |
| 5 | ******* | 5/8 Flat Washer | 4 |
| 6 | ******* | 5/8NCx2 1/2 Carriage Bolt | 2 |
| 7 | 804-819 | 1/4x1 1/4 Square Key | 2 |
| 8 | 802-454 | Taperlock Bushing 2012-1 1/4 | 1 |
| 9 | 802-532 | Sprocket 50BTB32 | 1 |
| 10 | 802-063 | Flange Bearing VCJT 1 1/4 | 2 |
| 11 | 890-104 | Air Lock Shaft | 1 |
| 12 | 890-109 | Rubber Flite 4" (Used on almonds models) | 4 |
| 13 | 802-426 | Taperlock Bushing 1610-1 1/4 | 1 |
| 14 | 802-516 | Sprocket 50BTB16 | 1 |
| 15 | 800-144 | Rubber Flite 5" (Used on walnut models) | 4 |
