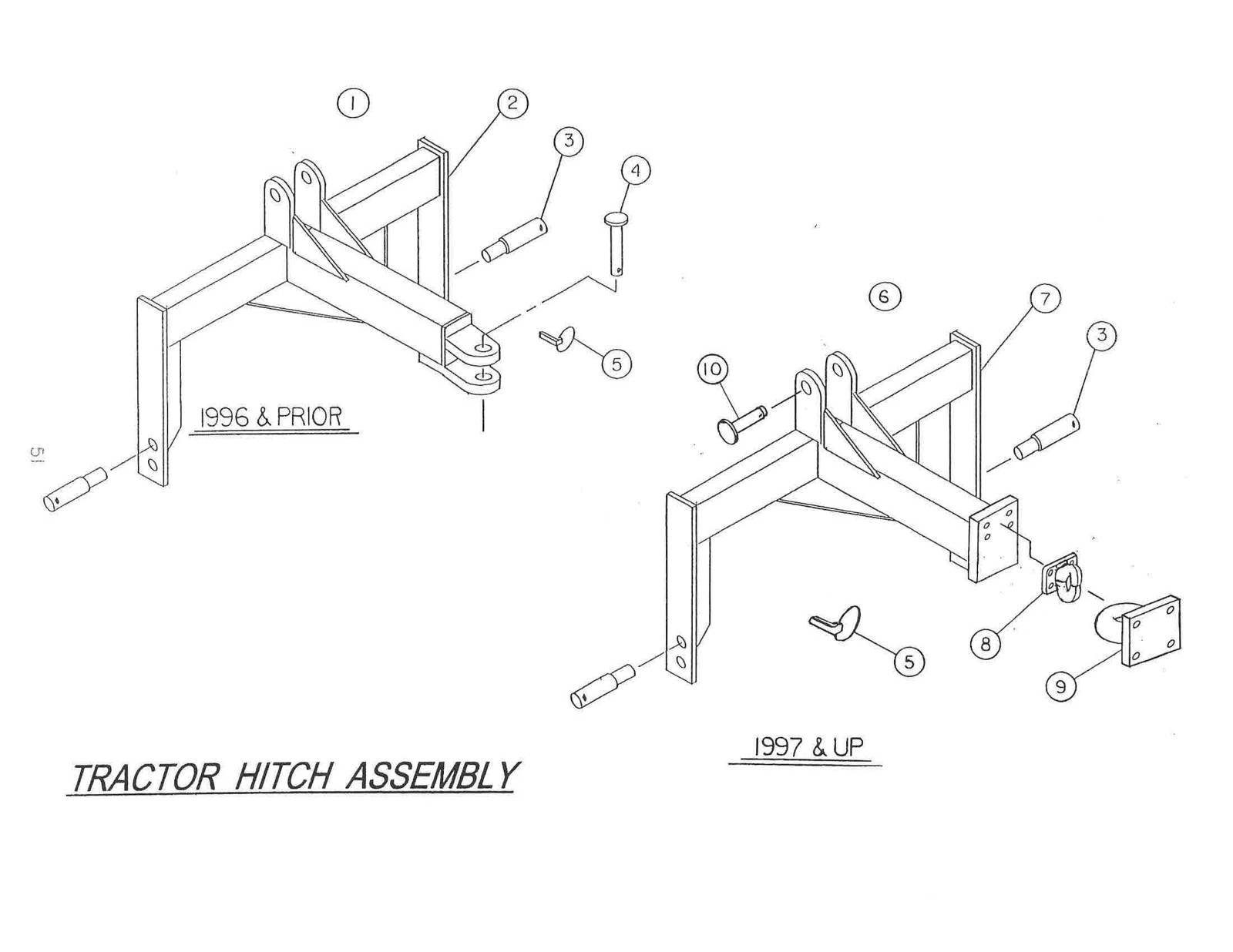

Tractor Hitch Assembly (1996 & Prior / 1997 & Up) · Weiss McNair 8900 PB Harvester
Tap a circled number on the diagram to identify the part.
1
2
3
4
5
6
7
3
10
8
5
9
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | 948-29 | 3-Point Tractor Hitch Kit (1996 & prior) (includes Items 2 - 5 & 10) | 1 |
| 2 | 948-013 | Tractor Hitch Frame (1996 & prior) | 1 |
| 3 | 803-222 | Hitch Pin Cat. #2 1 1/8NF | 2 |
| 4 | 800-011 | Clevis Type Hitch Pin 1 1/16x3 7/8 (1996 & prior) | 1 |
| 5 | 803-291 | Lynch Pin Cat. #2 7/16x2 1/8 | 3 |
| 6 | 894-29 | Pintle Hook Hitch Kit (1997 & up) (includes Items 3,5,7-10) | 1 |
| 7 | 894-124 | Pintle Hook Hitch (1997 & up) | 1 |
| 8 | 805-385 | Pintle Hook (1997 & up) | 1 |
| 9 | 805-386 | Draw Bar (1997 & up) | 1 |
| 10 | 500-722 | Top Link Pin | 1 |
