PTO Shaft Assembly · Weiss McNair 8900 PB Harvester

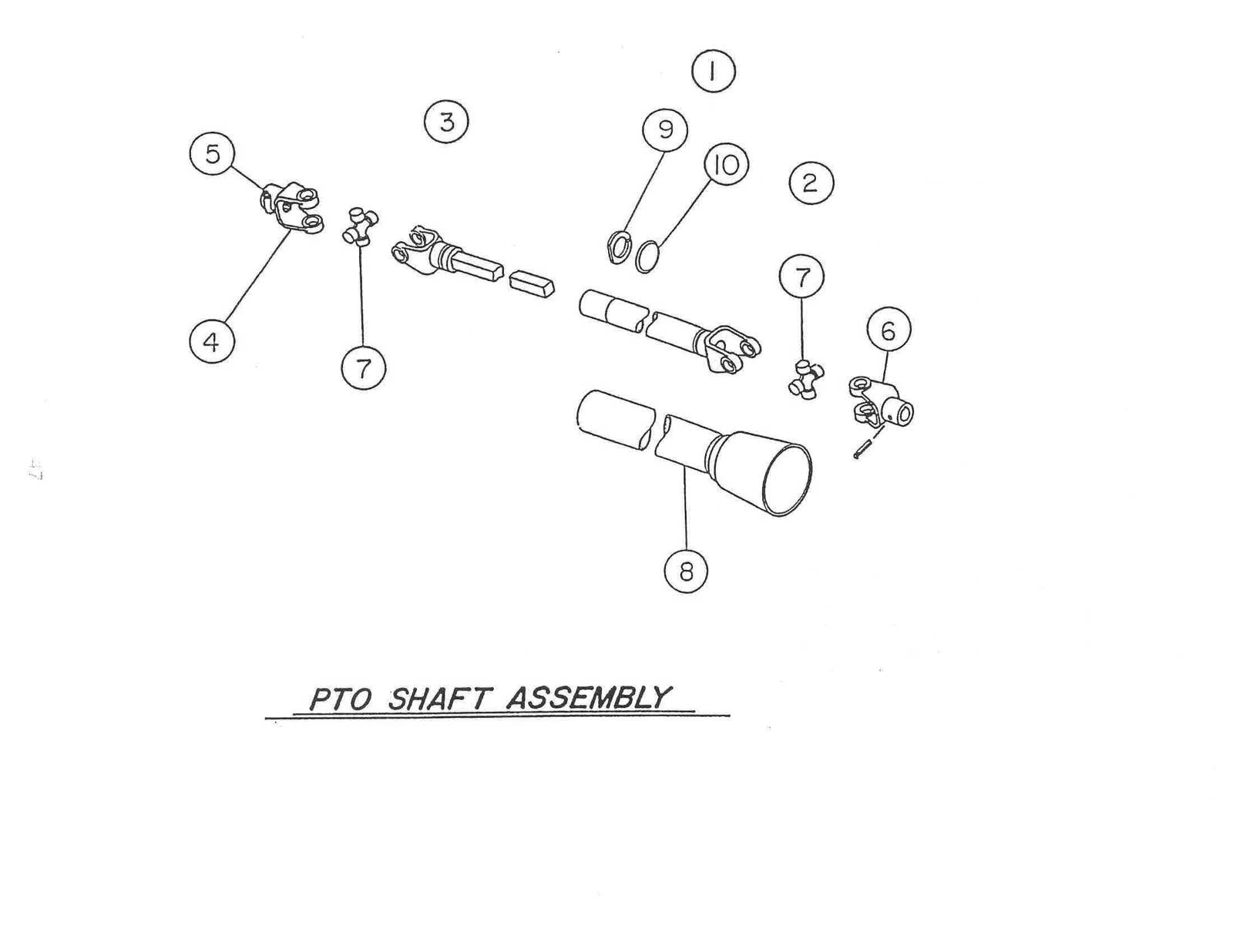

Tap a circled number on the diagram to identify the part.
1
3
9
10
5
2
7
6
4
7
8
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | 804-358 | PTO Shaft Kit TR35ND-P-54 (Includes items 2 and 3) | 1 |
| 2 | 804-359 | PTO Tube End with Yoke & Shield 1 1/2 | 1 |
| 3 | 804-389 | PTO Shaft End with Yoke and Shield 1 3/8 6 spline | 1 |
| 4 | 804-305 | 1 3/8 6 spline Snap Hitch Yoke | 1 |
| 5 | 804-755 | Snap Hitch Pin Repair Kit | 1 |
| 6 | 804-303 | 1 1/2 Round Bore Yoke | 1 |
| 7 | 804-335 | U-Joint | 2 |
| 8 | 804-348 | Plastic Shield --Inner comes with items 9 & 10 | 1 |
| 8 | 804-349 | Plastic Shield --Outer comes with items 9 & 10 | 1 |
| 9 | 804-761 | Nylon Bearing | 2 |
| 10 | 804-762 | Bearing Retainer | 2 |
