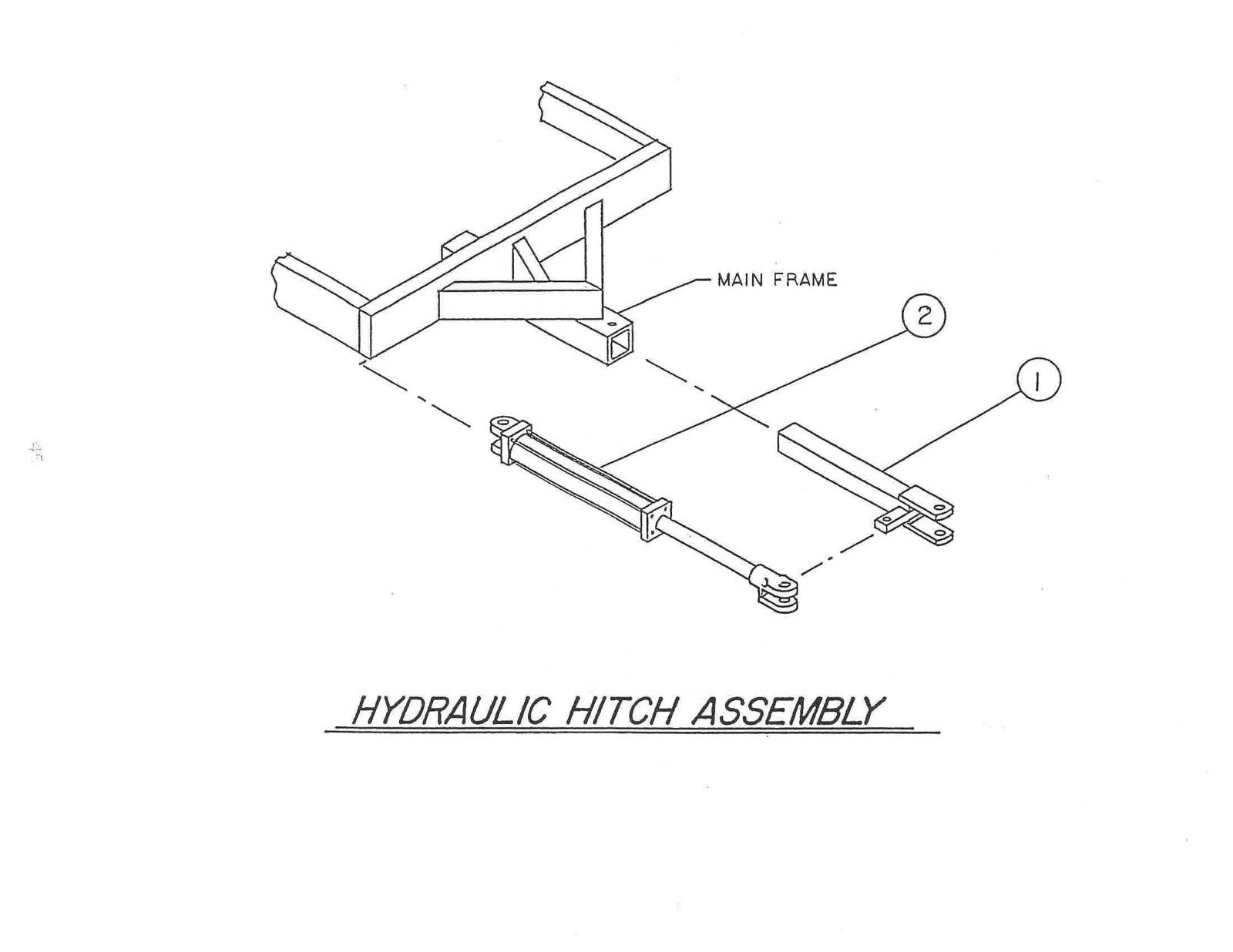

Hydraulic Hitch Assembly · Weiss McNair 8900 PB Harvester
Tap a circled number on the diagram to identify the part.
2
1
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 890-29 | Hydraulic Hitch Kit (includes items 1 - 11) | 1 | |
| 1 | 890-088 | Hydraulic Hitch Tube | 1 |
| 2 | 801-230 | Hydraulic Cylinder 2x14 | 1 |
| 3 | 890-087 | Cylinder Pivot Bracket (welded to main frame) | 1 |
| 4 | 801-451 | Hydraulic Hose 1/4" x 23' | 1 |
| 5 | 801-451 | Hydraulic Hose 1/4" x 24' | 1 |
| 6 | 801-463 | Adaptor 6NP-4SB | 4 |
| 7 | 801-507 | Fitting 6MP-6FPX | 1 |
| 8 | 801-509 | Fitting 6MP-6FPX-90 | 1 |
| 9 | 801-538 | Fitting 8MP-6FP | 2 |
| 10 | 801-056 | Pioneer Quick Coupler-Male | 2 |
| 11 | 803-469 | Hose Clamp 1/2" | 5 |
| 12 | 500-722 | Top Link Pin | 1 |
