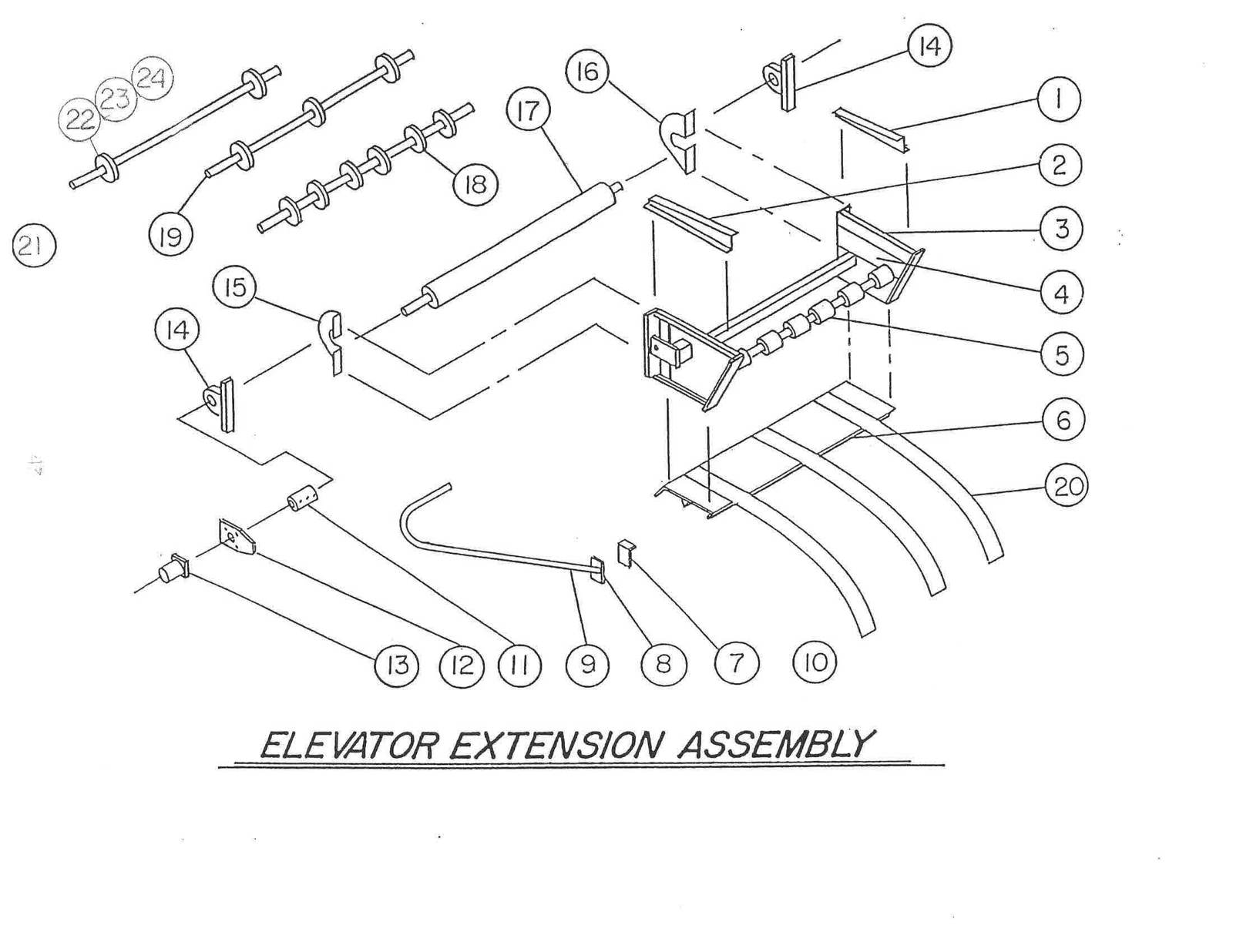

Elevator Extension Assembly · Weiss McNair 8900 PB Harvester
Tap a circled number on the diagram to identify the part.
14
14
16
17
1
2
3
4
5
6
20
22
23
24
21
19
18
15
13
12
11
9
8
7
10
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| N/I | 890-010 | Anti-Rotation Weldment | 1 |
| 1 | 890-083 | Extension Top Rail | 1 |
| 2 | 890-082 | Extension Top Rail | 1 |
| 3 | 890-080 | Elevator Extension | 1 |
| 4 | 890-078 | Chain Side Rail | 2 |
| 5 | 836-42 | Support Roller Kit | 1 |
| 6 | 890-081 | Return Pan Weldment | 1 |
| 7 | 890-089 | Brush Guard Mounting Bracket | 1 |
| 8 | 890-090 | Brush Guard Flange | 1 |
| 9 | 890-009-09 | Brush Guard | 1 |
| 10 | 890-21 | Elevator Extension Kit. Includes Items 1-9,20 and: 28" of extra elevator chain | 1 |
| 11 | 804-699 | Clamp Coupling | 1 |
| 12 | 890-040 | Motor Sub-Plate | 1 |
| 13 | 801-001 | Hydraulic Motor | 1 |
| 14 | 802-012 | Pillow Block Bearing VAS 1 1/4 | 2 |
| 15 | 890-075 | Nut Deflector | 1 |
| 16 | 890-074 | Nut Deflector | 1 |
| 17 | 890-084 | Elevator Drive Roller Rubber Covered | 1 |
| 18 | 936-200 | Elevator Drive Sprocket (Walnut Only 1 x 1) | 1 |
| 19 | 890-120 | Elevator Drive Sprocket (1996 & prior) (Walnut Tube Chain) | 1 |
| 20 | 890-079 | Wear Strip 108" | 3 |
| 21 | 890-56 | 2-Sprocket Drive Shaft (1997 & up) (Items 22-24) (Bar or Tube Chain Only) | 1 |
| 22 | 890-185 | 2-Sprocket Drive Shaft Only | 1 |
| 23 | 804-821 | 1/4 x 3 Sq. Key | 4 |
| 24 | 802-740 | Sprocket 1 1/4 Bore with 1/4 Key | 2 |
