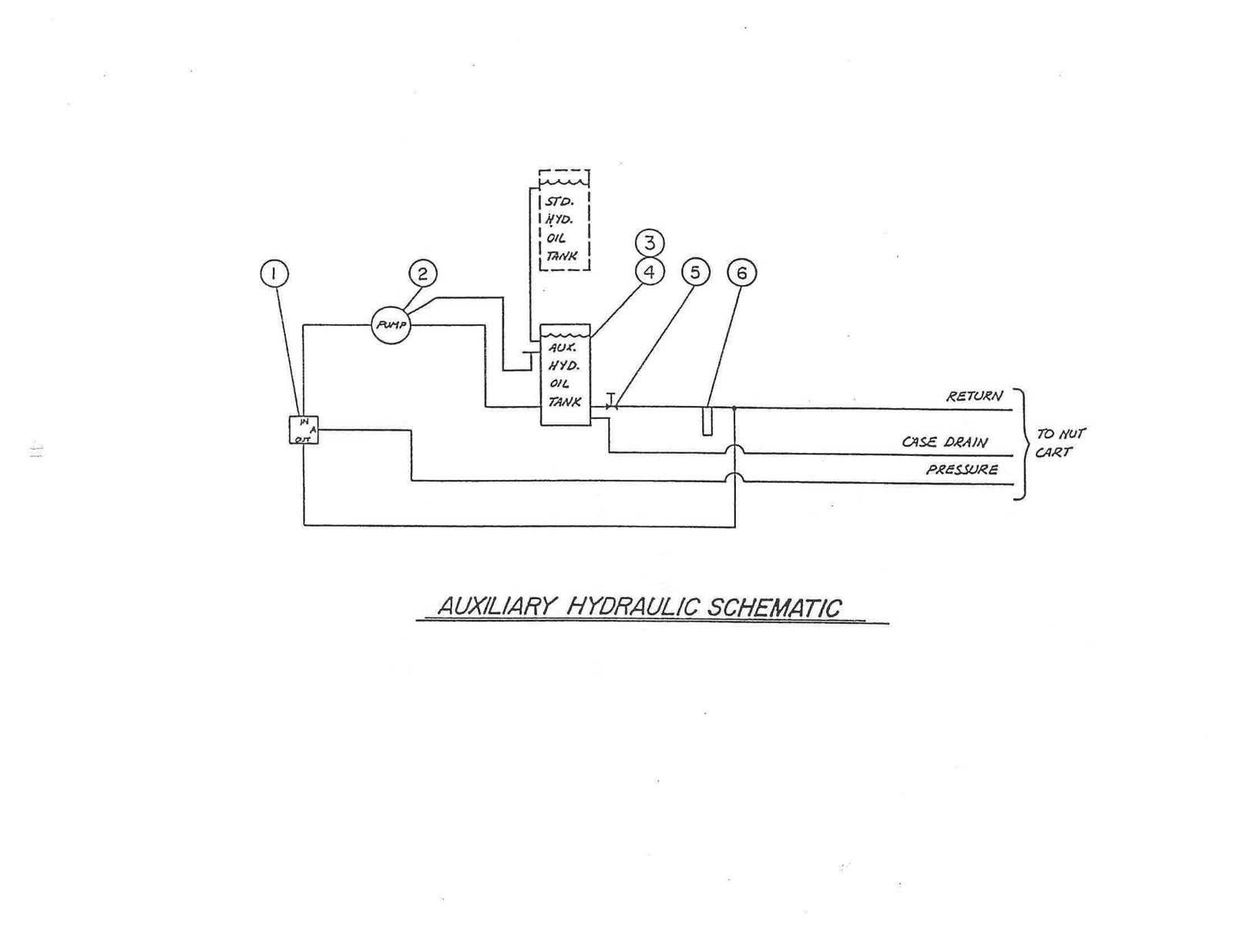

Auxiliary Hydraulic Schematic · Weiss McNair 8900 PB Harvester
Tap a circled number on the diagram to identify the part.
1
2
3
4
5
6
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | 801-038 | Brand Valve | 1 |
| 2 | 801-323 | Hydraulic Pump | 1 |
| 3 | 890-008 | Hydraulic Tank | 1 |
| 4 | 803-651 | Sight Glass | 1 |
| 5 | 803-696 | 3/4 Full Flow Valve | 1 |
| 6 | 801-382 | Return Filter | 1 |
| 7 | 801-381 | Filter Element | 1 |
