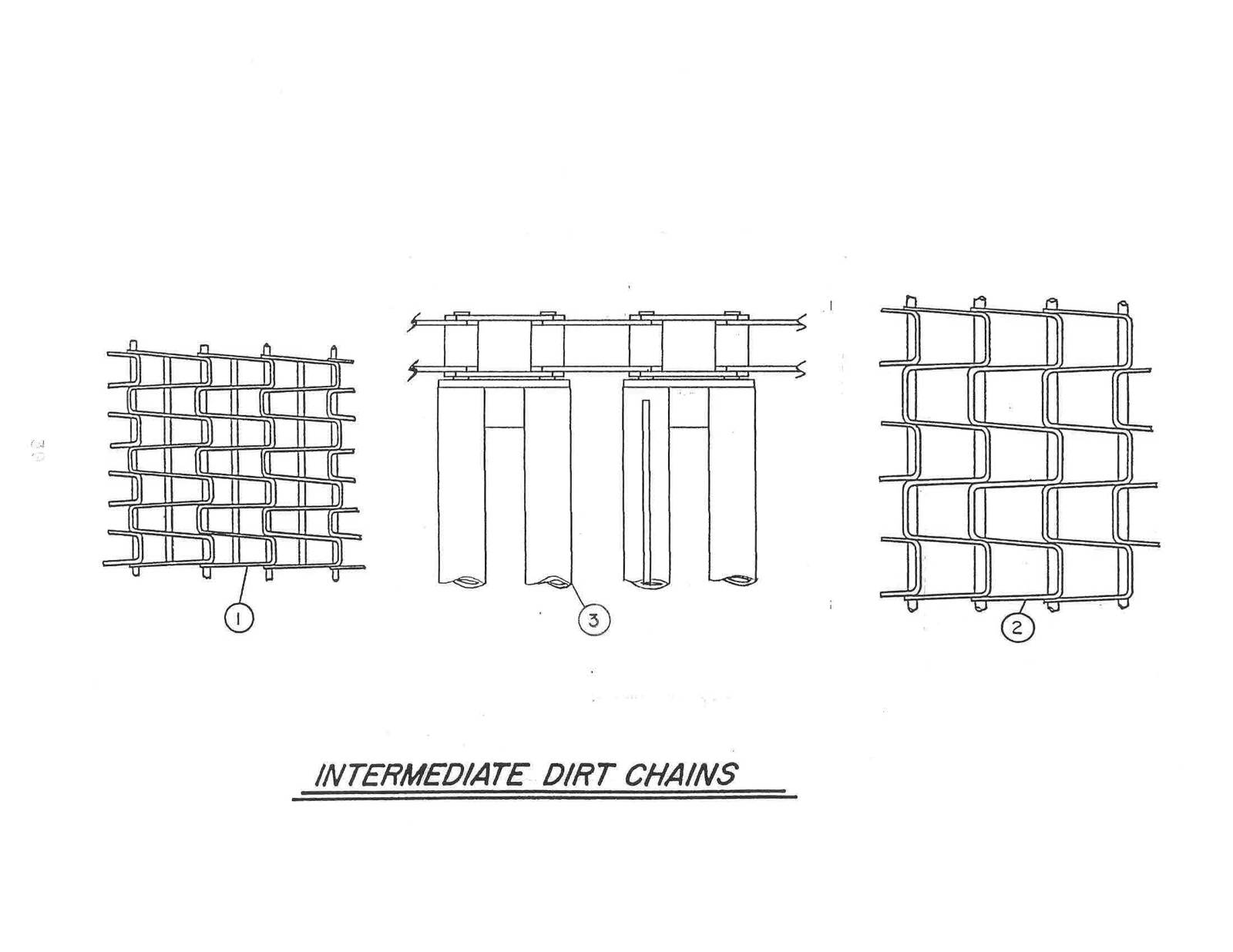

Intermediate Dirt Chains · Weiss McNair 8900 PB Harvester
Tap a circled number on the diagram to identify the part.
1
3
2
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | 890-28 | Heavy Duty Almond Chain Kit, Flites on 12" Centers. Kit includes the following: | 1 |
| 1 | 803-144 | -1/2x1/2x48" 44 loop chain x 7'9" | |
| 1 | 803-140 | -Cross Flite Mount/Splice Wire 9ga. x 48 | 8 |
| 1 | 803-142 | -Splice Wire 6ga. x 48 | 1 |
| 1 | 948-192 | -Cross Flite 48" | 8 |
| 1 | 804-926 | Heavy Duty Almond Chain, Flites on 12" Centers | |
| 2 | 890-13 | Heavy Duty Walnut Chain Kit. Kit includes the following: | 1 |
| 2 | 803-117 | -1x1x48" 25 loop chain x 7'9" | |
| 2 | 803-140 | -Cross Flite Mount Rod 9ga. x 48 | 8 |
| 2 | 803-142 | -Splice Wire 6ga. x 48 | 1 |
| 2 | 948-192 | -Cross Flite 48" | 8 |
| 2 | 804-933 | Heavy Duty Walnut Chain, Flites on 12" Centers | |
| 3* | 890-54 | Heavy Duty Walnut Tube Chain Kit (New 1997, Replaces 890-32). Kit includes the following: | 1 |
| 3* | 890-176 | -Heavy Duty Intermediate Tube Chain 7'9" | 1 |
| 3* | 890-175 | -Master Links | 1 |
