Hydraulic Schematic · Weiss McNair 8900 PB Harvester

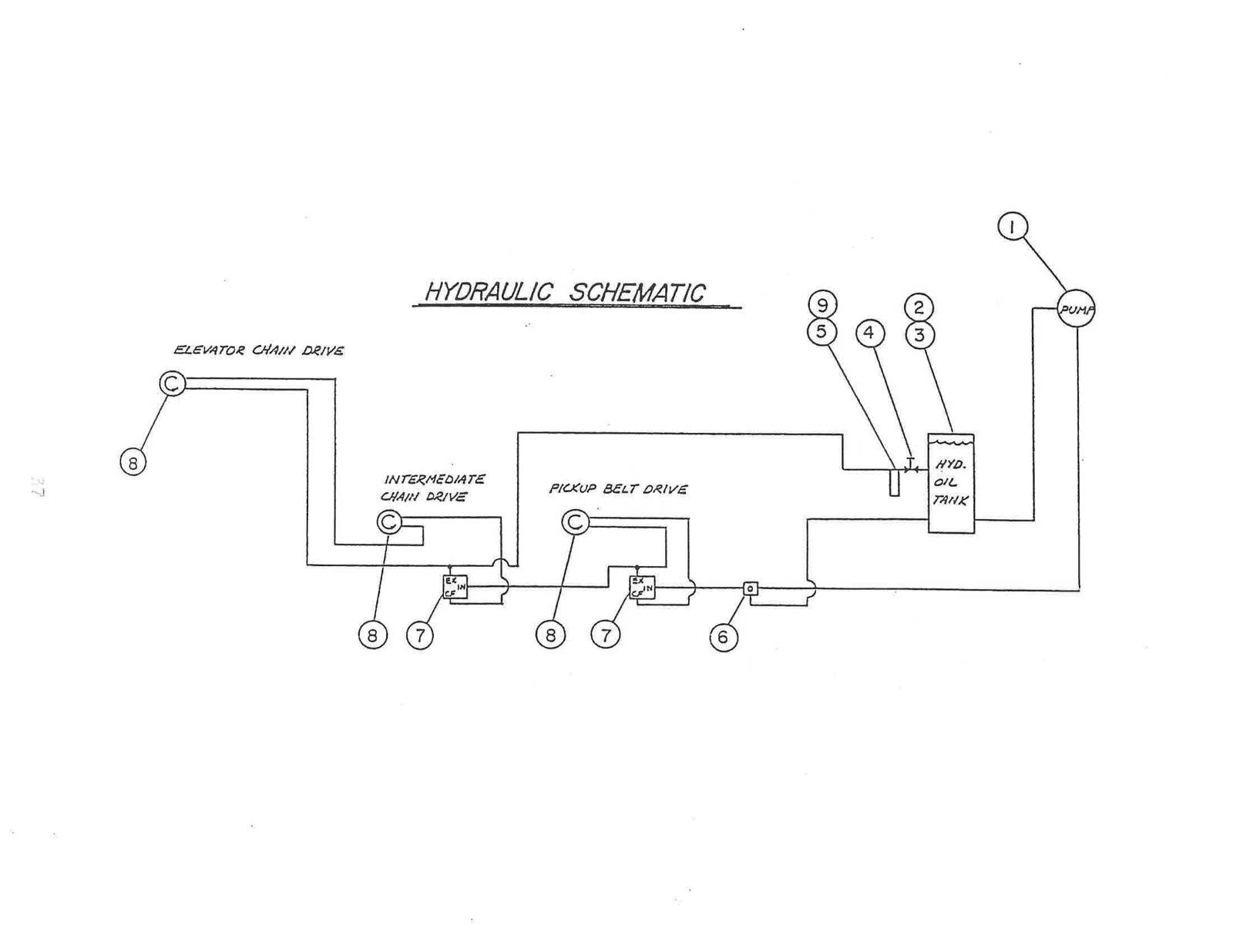

Tap a circled number on the diagram to identify the part.
1
9
5
4
2
3
8
8
7
8
7
6
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| N/I | 890-181 | Flow Control Guard (optional) | 3 |
| N/I | 801-352 | Suction Screen | 1 |
| 1 | 801-320 | Hydraulic Pump, Vickers | 1 |
| 2 | 890-007 | Hydraulic Tank | 1 |
| 3 | 803-651 | Sight Glass | 1 |
| 4 | 803-696 | 3/4 Full Flow Valve | 1 |
| 5 | 801-382 | Return Filter | 1 |
| 6 | 801-050 | Relief Valve | 1 |
| 7 | 801-018 | 16 GPM Flow Control | 2 |
| 8 | 801-001 | Hydraulic Motor | 3 |
| 9 | 801-381 | Filter Element | 1 |
