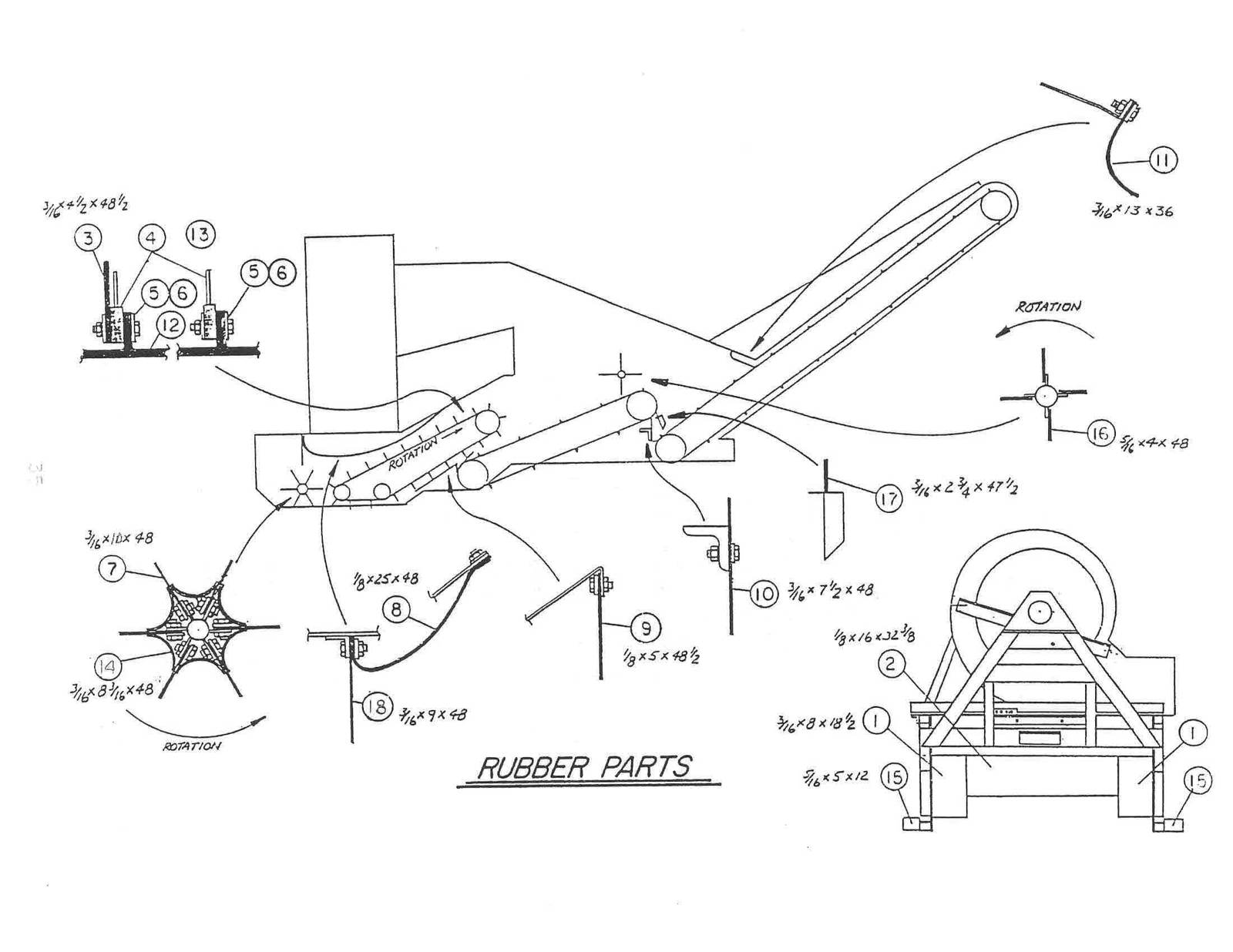

Rubber Parts · Weiss McNair 8900 PB Harvester
Tap a circled number on the diagram to identify the part.
3
4
13
5
6
5
6
12
11
16
17
10
7
8
9
14
18
2
1
1
15
15
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| N/I | 900-138 | Pickup Belt Splice Strip (metal strip attaches belt) | 2 |
| 1 | 890-101 | Side Drape | 2 |
| 2 | 890-096 | Front Center Drape | 1 |
| 3 | 900-141 | Rubber Flap (1990 & prior) | 8 |
| 3 | 900-141 | Rubber Flap (1991 & up) | 7 |
| 4 | 800-133 | Wire Rake (1990 & prior) | 15 |
| 4 | 800-133 | Wire Rake (1991 & up) | 13 |
| 5 | 890-129 | Rake Mount Strip 12 1/4" (1991 & up) | 26 |
| 6 | 900-139 | Metal Mount Strip 1/8x1 1/2x48 (1990 & prior) | 15 |
| 6 | 890-130 | Rake Mount Strip 21 1/4" (1991 & up) | 13 |
| 7 | 900-113 | Flap | 6 |
| 8 | 890-025 | Cushion Flap | 1 |
| 9 | 890-038 | Bottom Elevator Flap | 1 |
| 10 | 890-031 | Middle Elevator Flap | 11 |
| 11 | 890-067 | Top Elevator Flap | 1 |
| 12 | 890-106 | Rubber Cleated Pickup Belt 48x82 (1991+) | 1 |
| 12 | 948-138 | Rubber Cleated Pickup Belt 48x93 (1990 & prior) | 1 |
| 13 | 890-30 | Pickup Belt Kit (1991 & up) (includes items 3,4,5,6 and 12) | 1 |
| 13 | 948-28 | Pickup Belt Kit (1990 & prior) (includes items 3,4,5,6, & 12) | 1 |
| 14 | 890-098 | Front Feeder Web | 6 |
| 15 | 948-136 | Side Shoe Rubber 5/16x5x12 | 2 |
| 16 | 890-109 | Rubber Flite | 4 |
| 17 | 890-111 | Fallout Rubber (Used on walnut models only) | 1 |
| 18 | 899-013 | Flap | 1 |
