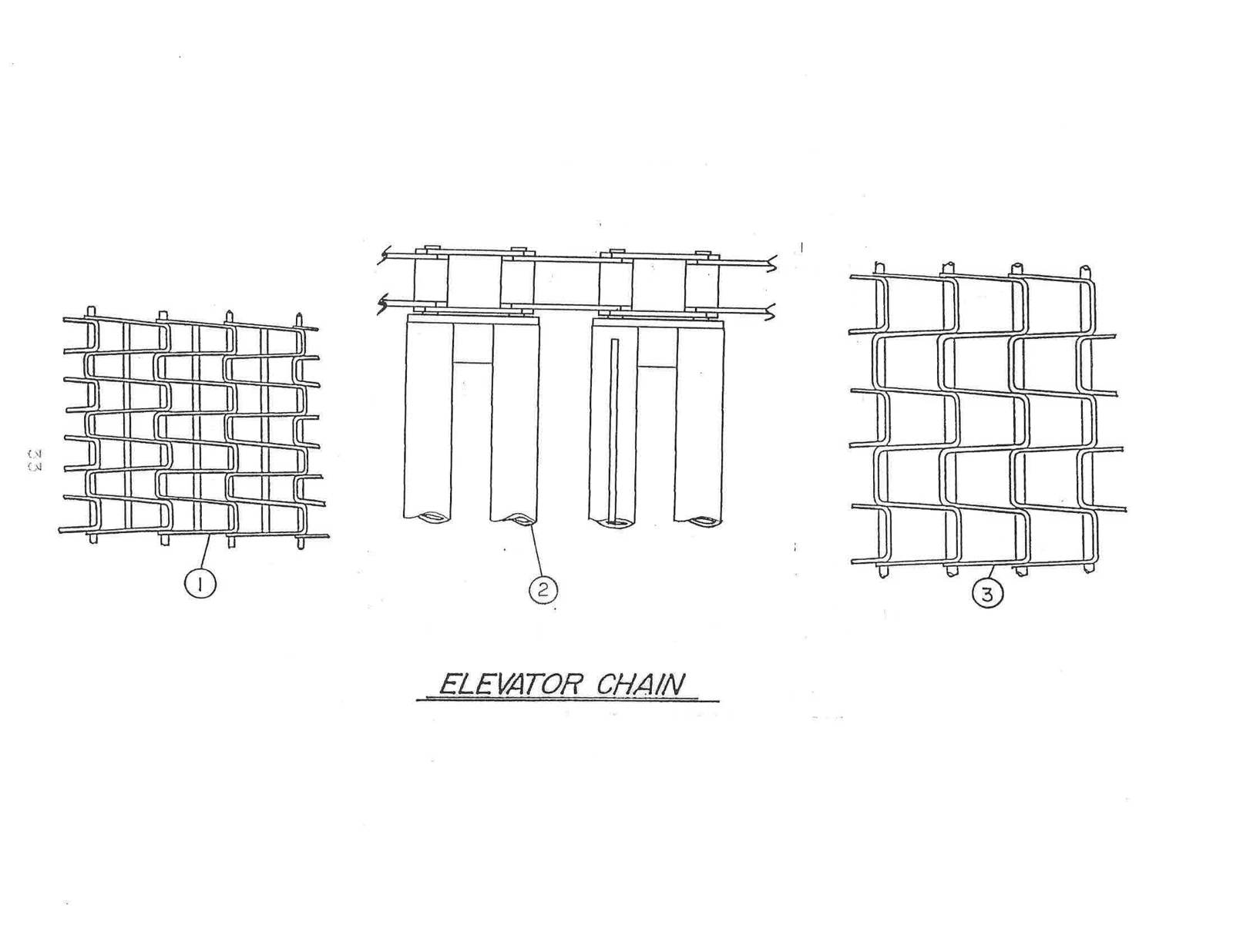

Elevator Chain · Weiss McNair 8900 PB Harvester
Tap a circled number on the diagram to identify the part.
1
2
3
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 803-124 | -1/2x1/2x36" 34 Loop Chain x 21'6" | ||
| 803-133 | -Cross Flite Mount/Splice Wire 9ga. x 36 | 44 | |
| 936-192 | -Cross Flite | 43 | |
| 890-38 | Chain Kit for Model with 12" Elev. Extension | ||
| 803-124 | -1/2x1/2x36" 34 Loop chain x 23'6" | ||
| 803-133 | -Cross Flite Mount/Splice Wire 9ga x 36 | 48 | |
| 936-192 | -Cross Flite | 47 | |
| 890-43 | Chain Kit for 12" Elev. Extension Retrofit | ||
| 803-124 | -1/2x1/2x36" 34 Loop Chain x 2'4" | ||
| 803-133 | -Cross Flite Mount/Splice Wire 9ga. x 36 | 5 | |
| 936-192 | -Cross Flite | 4 | |
| 804-922 | Heavy Duty Almond Chain with Flites | ||
| 896-0060 | Add 28" of Chain for 14" Extension. includes the following: | 1 | |
| 890-171 | -Heavy Duty Walnut Tube Chain x 21'6" | 1 | |
| 890-170 | -Master Link | 1 | |
| 804-920 | Heavy Duty Walnut Tube Chain w/ Flites | ||
| 803-108 | -1x1x36" 19 loop Chain x 21'6" | ||
| 803-133 | -Cross Flite Mount Rod 9ga. x 36 | 43 | |
| 803-134 | -Splice Wire 6ga. x 36 | 1 | |
| 936-192 | -Cross Flite | 43 | |
| 890-40 | Chain Kit for Model with 14" Elev. Extension | ||
| 803-108 | -1x1x36" 19 Loop Chain x 23'6" | ||
| 803-133 | -Cross Flite Mount Rod 9ga. x 36 | 47 | |
| 803-134 | -Splice Wire 6ga. x 36 | 1 | |
| 936-192 | -Cross Flite | 47 | |
| 890-45 | Chain Kit for 14" Elev. Extension Retrofit | ||
| 803-108 | -1x1x36" 19 Loop Chain x 2'4" | ||
| 803-133 | -Cross Flite Mount Rod 9ga. x 36 | 4 | |
| 803-134 | -Splice Wire 6ga. x 36 | 1 | |
| 936-192 | -Cross Flite | 4 | |
| 804-905 | Heavy Duty Walnut Chain with Flites | ||
| 1 | 890-27 | Heavy Duty Almond Chain Kit, Flites on 6" Centers. Kit includes the following: | 1 |
| 2* | 890-52 | Heavy Duty Walnut Tube Chain Kit (New 1997, Replaces 890-33) | 1 |
| 3 | 890-11 | Heavy Duty Walnut Chain Kit, Flites on 6" Centers. Kit includes the following: | 1 |
