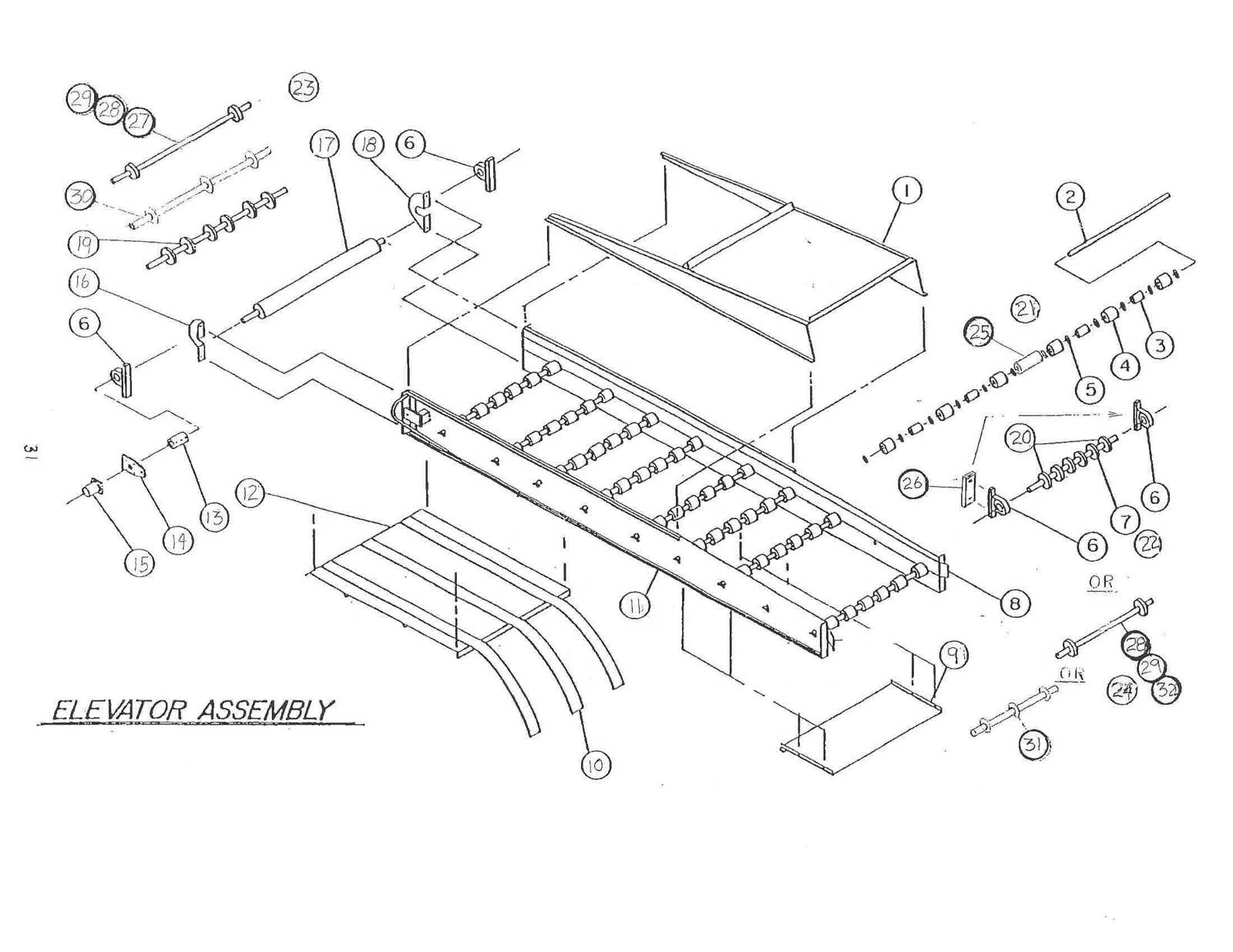

Elevator Assembly · Weiss McNair 8900 PB Harvester

Tap a circled number on the diagram to identify the part.

diagram
1
2
3
4
5
6
6
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
28
29
29
30
31
32
✕
#Part numberDescriptionQty
N/I 803-471 Hydraulic Hose Hanger Plate 2
N/I 802-792 Split Chain Guide 2
1 890-062 Elevator Cover Weldment 1
2 836-213 Support Roller Shaft 3/4x39 9
3 804-564 PVC Spacer 3", Sch.40 36
4 800-212 Rubber Roller 54
5 ******* 3/4 Flat Washer 108
6 802-012 Pillow Block Bearing VAS 1 1/4 4
7 836-220-01 Bottom Elevator Roller 1
8 894-006 Elevator Side Rail
9 890-057 Air Deflector 1
10 890-072 Wear Strip 96" 3
11 890-009 Elevator Weldment 1
12 890-052 Return Pan 1
13 804-699 Clamp Coupling 1
14 890-040 Motor Sub-Plate 1
15 801-001 Hydraulic Motor 1
16 890-075 Nut Deflector 1
17 890-084 Elevator Drive Roller Rubber Covered 1
18 890-074 Nut Deflector 1
19 936-200 Top Elevator Sprocket (Walnut Only 1x1) 1
20 804-443 Urethane Roller 6
21 836-42 Elevator Support Roller Kit (includes items 2,3,4,5,26) 9
22 836-16 Bottom Elevator Roller Kit (includes items 7,21) 1
23 890-56 Top Elevator 2-Sprocket(1997 & up) (Bar or Tube Chain) (Items 28-30) 1
24 890-57 Bottom Elevator Idler (Bar or Tube Chain) (1997 & up, Two Sprocket) (Includes items 29, 30 & 33) 1
25 804-560 PVC Spacer 4 1/4, Sch.40 9
26 890-044 Bearing Spacer (used w/ Bar or Tube Chain only) 2
27 890-185 2-Sprocket Drive Shaft Only (1997 & up) 1
28 804-821 1/4 x 3 Sq. Key (1997 & up) (2 on idler) 4
29 802-740 Sprocket 1 1/4 Bore w/ 1/4 Key (1997 & up) 2
30 890-120 3-Sprocket Drive Shaft (1996 & prior) (Walnut tube chain only) 1
31 890-119 3-Sprocket Bottom Idler (1996 & prior) (Walnut tube chain only) 1
32 890-188 2-Sprocket Idler Shaft Only 1
