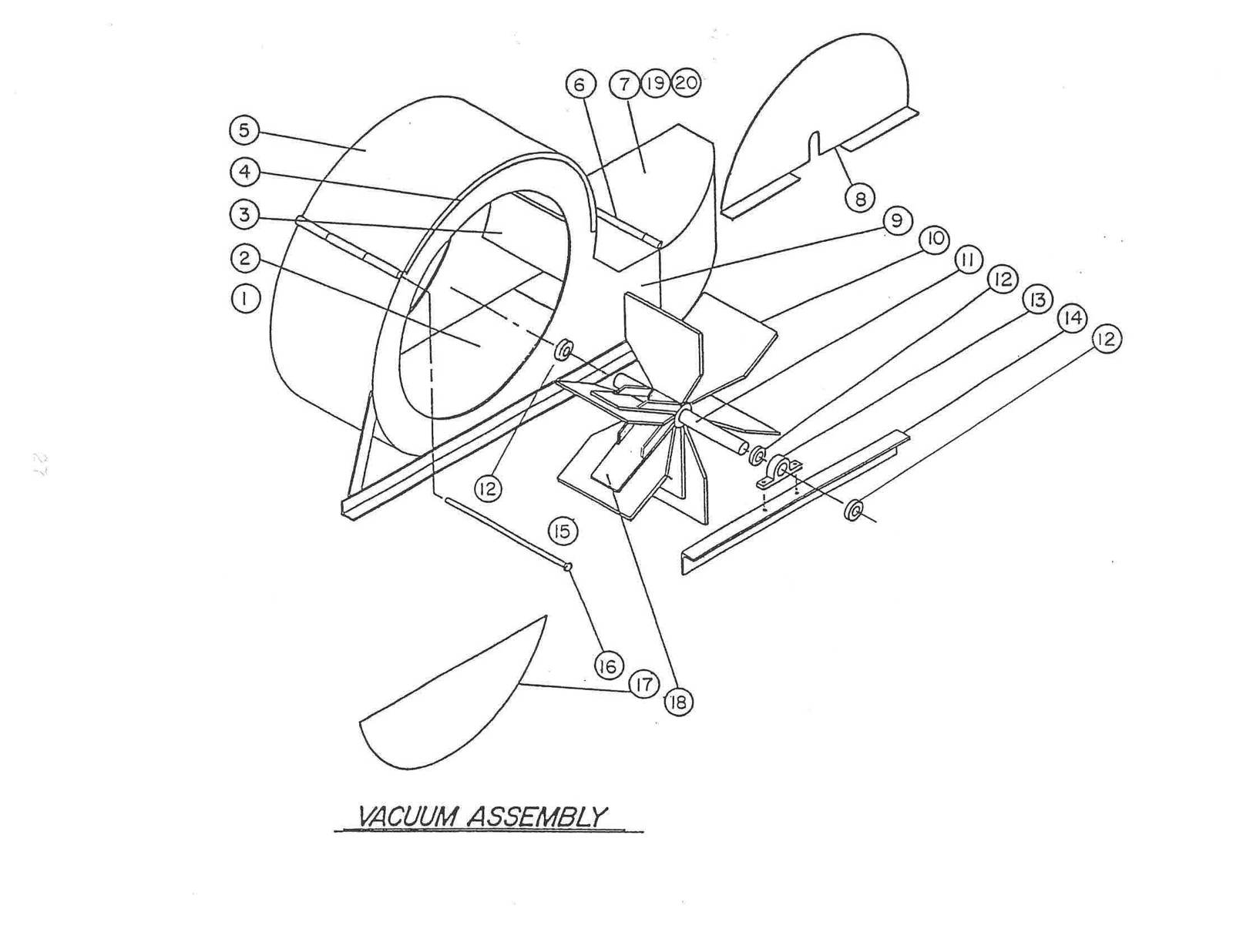

Vacuum Assembly · Weiss McNair 8900 PB Harvester
Tap a circled number on the diagram to identify the part.
1
2
3
4
5
6
7
8
9
10
11
12
12
12
13
14
15
16
17
18
19
20
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 890-36 | Vacuum Auxiliary Chute Kit (optional) | 1 | |
| 1 | 890-16 | Vacuum Liner Kit (includes items 2-4) | 1 |
| 2 | 805-126 | Vacuum Liner | 1 |
| 3 | 804-420 | Liner Cap | 1 |
| 4 | 804-448 | Access Panel Liner | 1 |
| 5 | 890-004 | Vacuum Access Panel | 1 |
| 6 | 890-094 | Vacuum Chute Pin | 1 |
| 7 | 890-093 | Vacuum Chute | 1 |
| 8 | 948-236 | Impeller Cover | 1 |
| 9 | 890-002 | Vacuum Housing | 1 |
| 10 | 890-095 | Vacuum Impeller Blade | 6 |
| 11 | 890-034 | Impeller Shaft | 1 |
| 12 | 803-163 | 1 3/4" Shaft Collar | 3 |
| 13 | 802-022 | Pillow Block Bearing RAK 1 3/4 | 1 |
| 14 | 890-003 | Bearing Bracket | 1 |
| 15 | 890-26 | Vacuum Impeller Kit (includes items 10 and 18) | 1 |
| 16 | 890-005 | Hinge Pin | 1 |
| 17 | 948-238 | Impeller Cover | 1 |
| 18 | 948-249 | Impeller Spider | 1 |
| 19 | 805-131 | Front Vacuum Chute Liner | 1 |
| 20 | 805-132 | Bottom Vacuum Chute Liner | 1 |
| 21 | 892-022-08 | 1/4" Repair Plate (Optional) | 1 |
