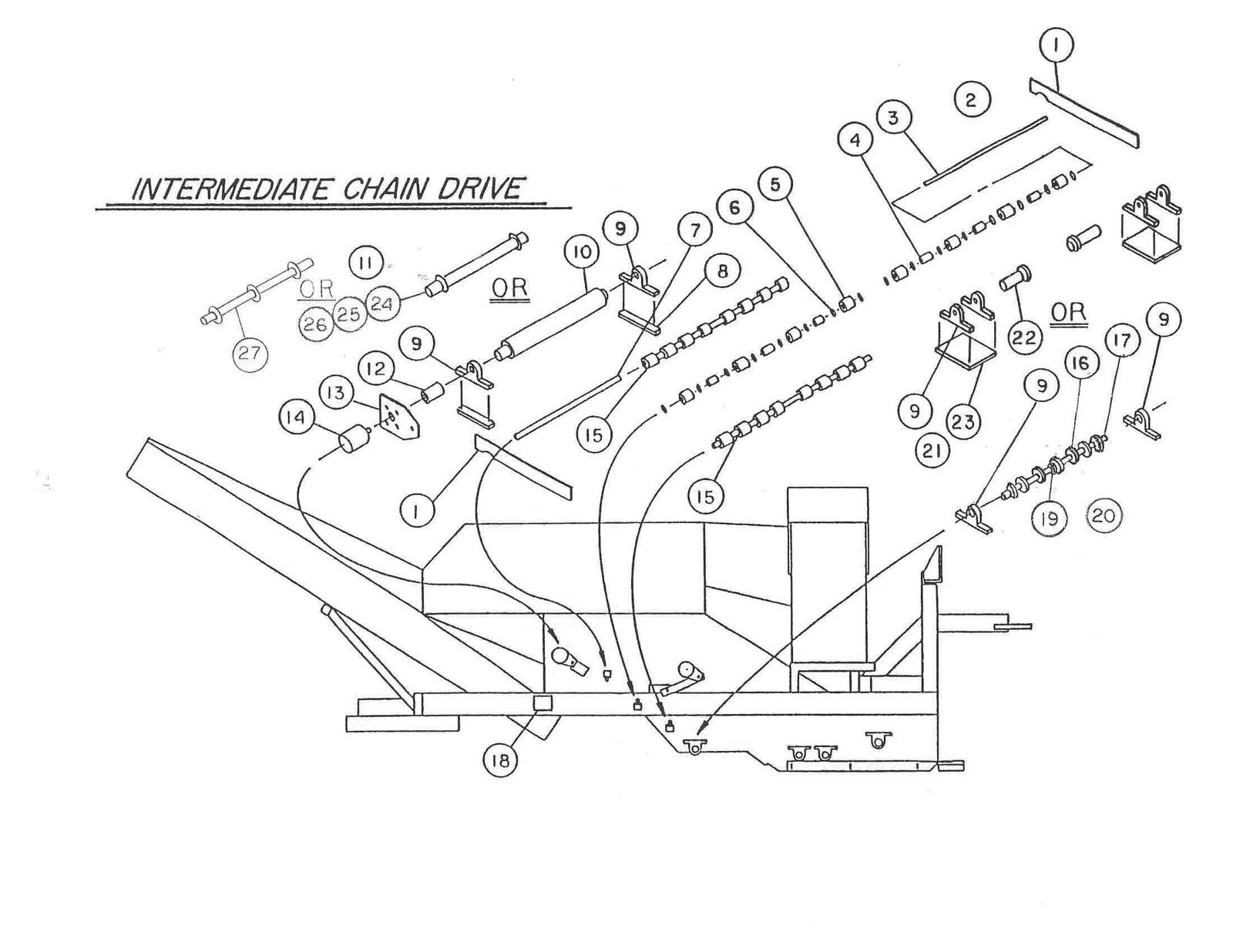

Intermediate Chain Drive · Weiss McNair 8900 PB Harvester
Tap a circled number on the diagram to identify the part.
1
1
2
3
4
5
6
7
8
9
9
9
9
9
10
11
12
13
14
15
15
16
17
18
19
20
21
22
23
24
25
26
27
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| N/I | 802-792 | Split Chain Guide | 2 |
| 1 | 890-011 | Chain Side Rail | |
| 2 | 948-22 | 53" Elevator Support Rod Kit (includes items 3-6) | 1 |
| 3 | 948-214 | 3/4" Support Roller Shaft x 53" | 1 |
| 4 | 804-564 | PVC Spacer | 21 |
| 5 | 800-212 | Rubber Roller | 24 |
| 6 | ******* | 3/4" Flat Washer | 48 |
| 7 | 948-213 | 3/4" Support Roller Shaft x 51" | 2 |
| 8 | 890-018 | Bearing Subplate | 2 |
| 9 | 802-012 | Pillow Block Bearing VAS 1 1/4 | |
| 10 | 894-039 | Drive Roller (Not used on models with bar or tube chain) | 1 |
| 11 | 890-55 | 2-Sprocket Intermediate Drive Shaft (1997 & up) (icludes Items 24-26) (Used only on models with bar or tube chain) | 1 |
| 12 | 804-699 | Clamp Coupling | 1 |
| 13 | 890-040 | Motor Subplate | 1 |
| 14 | 801-001 | Hydraulic Motor | 1 |
| 15 | 948-42 | 51" Elevator Support Rod Kit (includes items 4-7) | 2 |
| 16 | 804-443 | Urethane Roller | |
| 17 | 948-220-01 | Bottom Shaft | 1 |
| 18 | 801-018 | 16 GPM Flow Control | 1 |
| 19 | 802-158 | 1 1/4 Set Collar | 2 |
| 20 | 948-16 | Bottom Elev. Roller Kit (includes items 16,17 & 19) (Not used on models with bar or tube chain) | 1 |
| 21 | 890-46 | Tube Chain Stub Idler Shaft Kit (Includes items 9, 22 and 23) (Used only on models with bar or tube chain) (Include 890-001-29 Support Tube(qty.2)for retrofit) | 2 |
| 22 | 890-143 | Tube Chain Stub Idler Shaft | 1 |
| 23 | 890-144 | Bearing Mount Plate | 1 |
| 24 | 890-184 | 2-Sprocket Drive Shaft Only (1997 & up) | 1 |
| 25 | 804-821 | 1/4 x 3 Sq. Key (1997 & up) | 4 |
| 26 | 802-720 | Sprocket 1 1/4 Bore w/ 1/4 Key (1997 & up) | 2 |
| 27 | 890-121 | Intermediate Drive Shaft, 3-Sprocket (1996 and prior) (tube chain only) | 1 |
