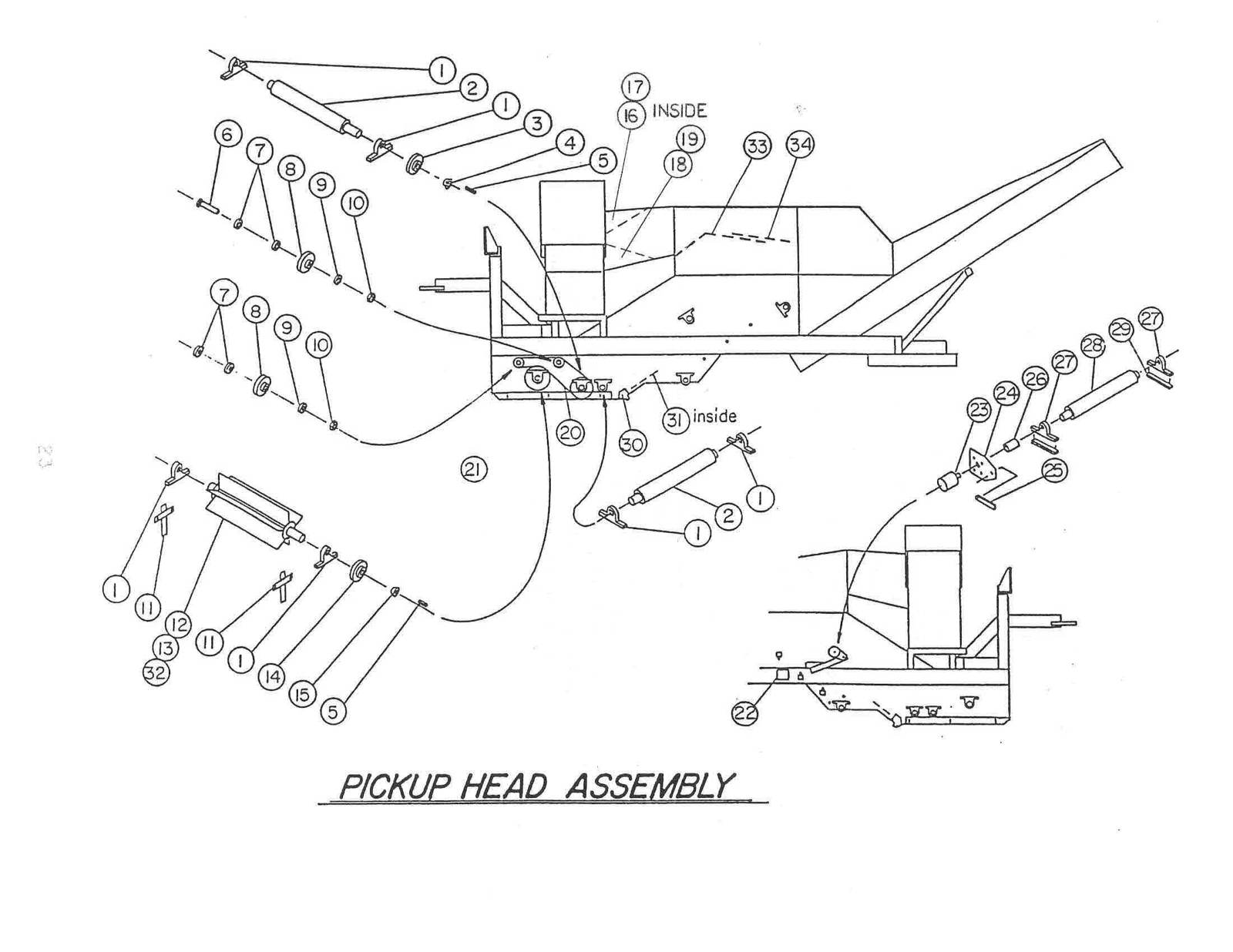

PICKUP HEAD ASSEMBLY (despiece con globos 1-34) · Weiss McNair 8900 PB Harvester

Tap a circled number on the diagram to identify the part.

diagram
1
1
1
1
1
1
1
2
2
3
4
5
5
6
7
7
8
8
9
9
10
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
27
28
29
30
31
32
33
34
✕
#Part numberDescriptionQty
N/I 900-138 Pickup Belt Splice Strip 2
1 802-012 Pillow Block Bearing VAS 1 1/4 6
2 900-153 Pickup Belt Bottom Roller 2
3 802-515 Sprocket 50 BS 15 1
4 802-405 Taper Lock Bushing 1210-1 1/4 1
5 804-819 1/4x1 1/4 Square Key 2
6 ******* 5/8x2 1/2 Carriage Bolt 1
7 ******* 5/8 Flat Washer 4
8 802-701 Sprocket 5017 5/8 Bore 2
9 ******* 5/8 Lock Washer 2
10 ******* 5/8NC Hex Nut 2
11 900-005 Filler Plate 2
12 900-111 Feeder Shaft 1
13 900-113 Feeder Flite 6
14 802-554 Sprocket 50 BTB 54 1
15 802-454 Taper Lock Bushing 2012x1 1/4 1
16 890-115 RH Top Vacuum Inlet Transition 1
17 890-116 LH Top Vacuum Inlet Transition 1
18 890-126 RH Bottom Vacuum Inlet Transition 1
19 890-127 LH Bottom Vacuum Inlet Transition 1
20 802-776 #50 Roller Chain w/ Conn. Link
21 890-071 Feeder Drive Cover (not shown) 1
22 801-018 16 GPM Flow Control 1
23 801-001 Hydraulic Motor 1
24 890-040 Motor Subplate 1
25 890-016 Anti-Rotation Extension Arm 1
26 804-700 Clamp Coupling 1
27 802-015 Pillow Block Bearing VAS 1 7/16 2
28 900-151 Pickup Belt Drive Roller 1
29 890-012 Bearing Subplate 2
30 936-118 Pickup Head Blade 1
31 890-036 Pickup Belt Return Pan 1
32 890-098 Front Feeder Web 6
33 890-134 Air Deflector Subplate (Not used on walnut models) 1
33 890-064 Air Deflector Subplate (walnut) 1
34 890-065 Adjustable Vacuum Deflector (Not used on walnut models) 1
