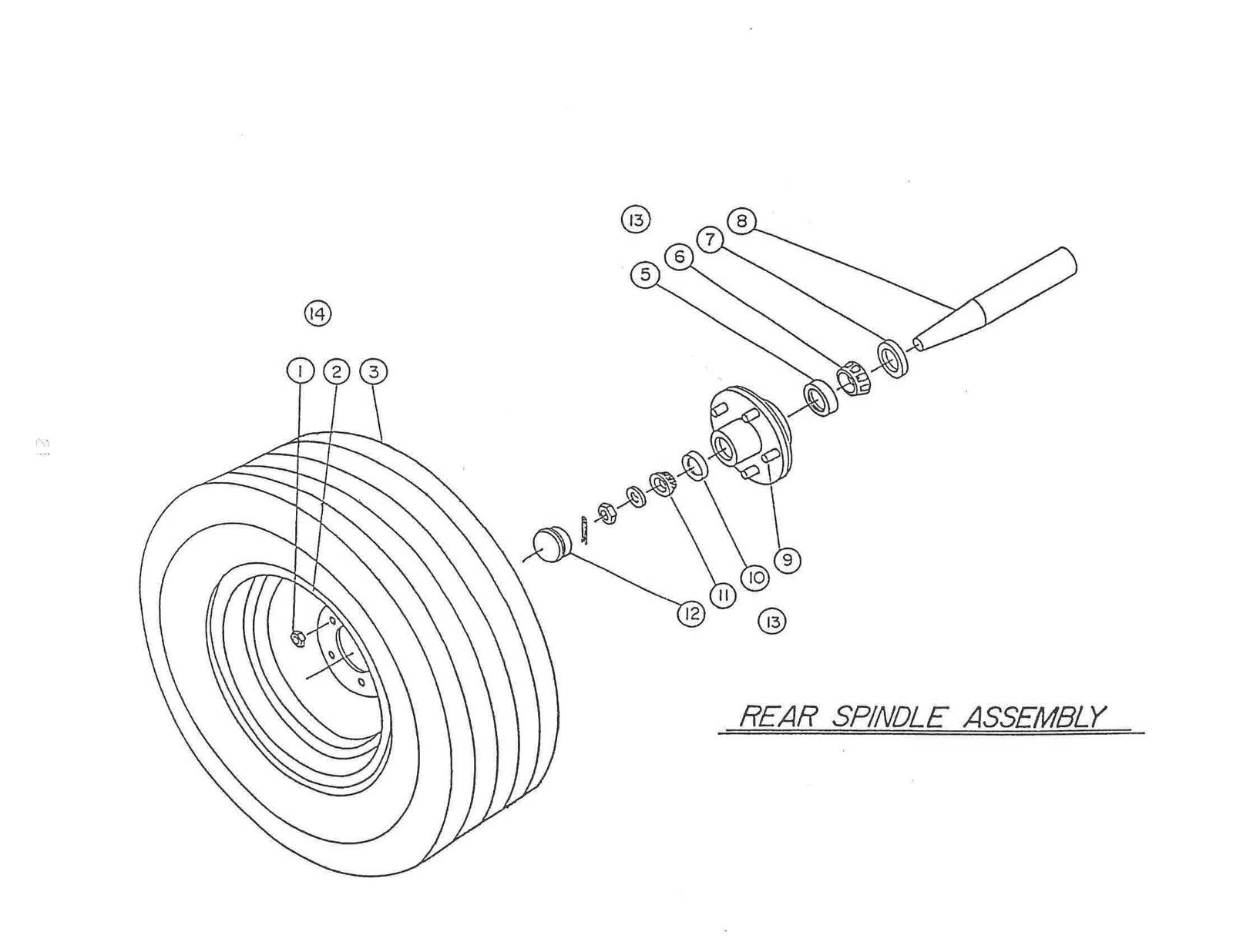

REAR SPINDLE ASSEMBLY (despiece con globos 1-14, sin 4) · Weiss McNair 8900 PB Harvester
Tap a circled number on the diagram to identify the part.
1
2
3
5
6
7
8
9
10
11
12
13
13
14
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | 803-961 | Lug Nut | 5 |
| 2 | 803-361 | Wheel Only 12x10.5 5 on 4 1/2 (through 1996) | 1 |
| 2 | 803-394 | Wheel Only 15x10, 6 on 6 (1997 & up) | 1 |
| 3 | 803-360 | Tire Only Softrac 26x12x12, 6-ply (through 1996) | 1 |
| 3 | 803-393 | Tire Only Ribbed 31x13.5x15 (1997 & up) | 1 |
| 5 | 802-115 | Inner Bearing Cup #L68111 (1996 & prior) | 1 |
| 5 | 804-962 | Inner Bearing Cup #BR25520 (1997 & up) | 1 |
| 6 | 802-139 | Inner Bearing 1 3/8 #L68149 (1996&prior) | 1 |
| 6 | 802-143 | Inner Bearing Cone #BR25580 (1997 & up) | 1 |
| 7 | 804-276 | Seal 1 3/8 #15529 (1996 & prior) | 1 |
| 7 | 804-261 | Seal MS-42 (1997 & up) | 1 |
| 8 | 803-913 | Spindle (through 1996) | 1 |
| 8 | 890-158 | Spindle (1997 & up) | 1 |
| 9 | 800-01EC | Stud #5081 | 5 |
| 10 | 802-114 | Outer Bearing Cup #L44610 (1996 & prior) | 1 |
| 10 | 802-131 | Outer Bearing Cup #LM67010 (1997 & up) | 1 |
| 11 | 802-123 | Outer Bearing 1 1/16 #L44649 (1996&prior) | 1 |
| 11 | 802-109 | Outer Bearing Cone #LM67048 (1997 & up) | 1 |
| 12 | 800-01B | Dust Cap (1996 & prior) | 1 |
| 12 | 800-11D | Dust Cap (1997 & up) | 1 |
| 13 | 800-01 | Hub Kit (through 1996) (includes items 5-7 & 9-12) | 1 |
| 13 | 800-11 | Hub Kit (1997 & up) (includes items 5-7 & 9-12) | 1 |
| 14 | 803-362 | Softrac Tire & Wheel (through 1996) | 1 |
| 14 | 803-392 | Rib Tire & Wheel (1997 & up) | 1 |
