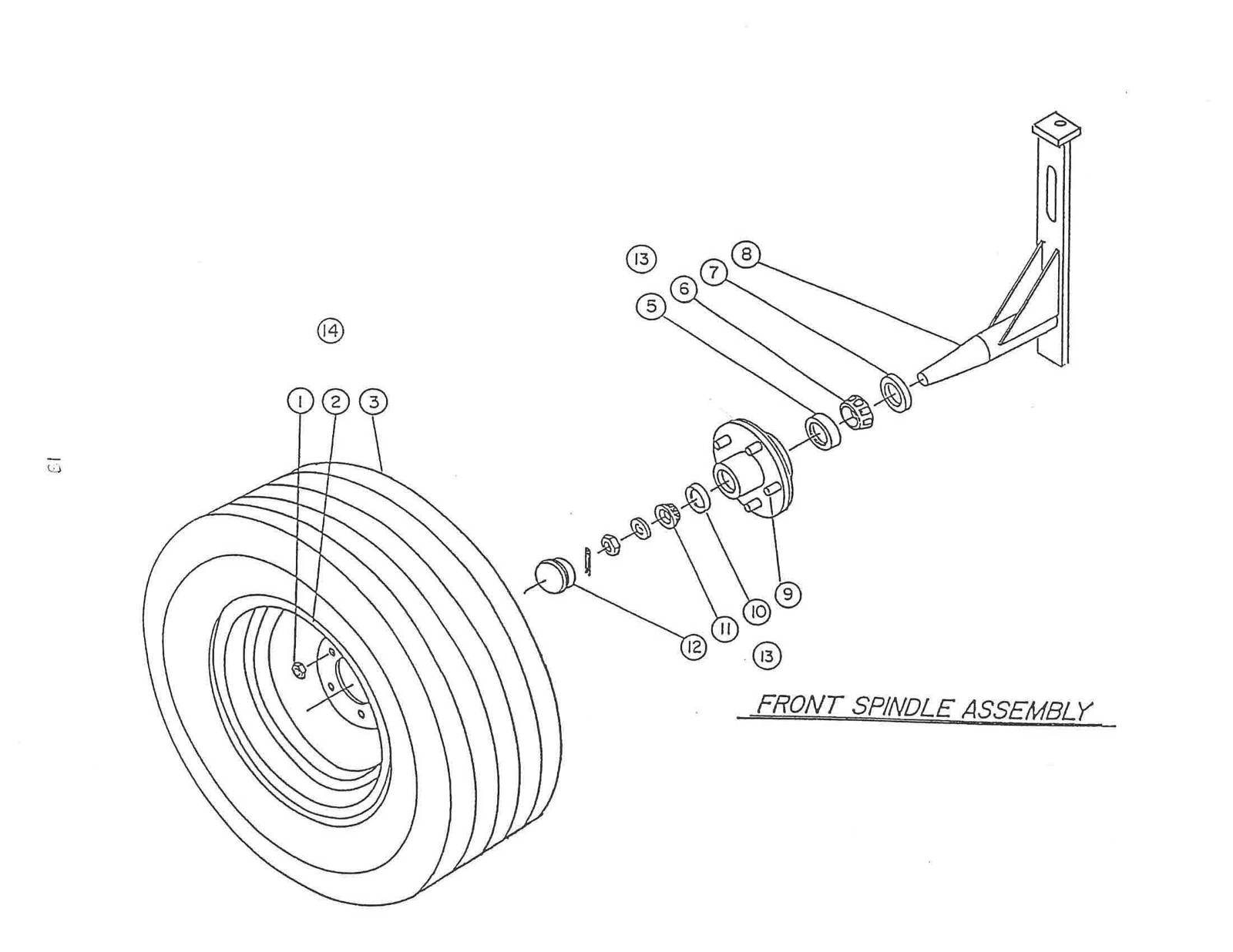

FRONT SPINDLE ASSEMBLY (despiece con globos 1-14, sin 4) · Weiss McNair 8900 PB Harvester
Tap a circled number on the diagram to identify the part.
1
2
3
5
6
7
8
9
10
11
12
13
13
14
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | 803-961 | Lug Nut | 5 |
| 2 | 803-361 | Wheel Only 12x10.5 5 on 4 1/2 | 1 |
| 3 | 803-360 | Tire Only Softrac 26x12x12, 6-ply | 1 |
| 5 | 802-115 | Inner Bearing Cup #L68111 | 1 |
| 6 | 802-139 | Inner Bearing 1 3/8 #L68149 | 1 |
| 7 | 804-276 | Seal 1 3/8 #15529 | 1 |
| 8 | 890-024 | Spindle Weldment | 1 |
| 9 | 800-01EC | Stud #5081 | 5 |
| 10 | 802-114 | Outer Bearing Cup #L44610 | 1 |
| 11 | 802-123 | Outer Bearing 1 1/16 #L44649 | 1 |
| 12 | 800-01B | Dust Cap | 1 |
| 13 | 800-01 | Hub Kit (Includes Items 5-7 and 9-12) | 1 |
| 14 | 803-362 | Softrac Tire & Wheel | 1 |
